>12MP 50mm M12 Lens Telephoto Low Distortion

Model: CIL051-F2.8-M12ANIR, CIL051-F2.8-M12C650, CIL051-F2.8-M12CNIR

Commonlands LLC

Request a Quote

The CIL051 is a low distortion telephoto 50mm M12 lens which provides a 7° Horizontal Field of View on 1/2.3" type sensors. The lens is suitable for 1/1.7" image sensors with 10MP and up to 2/3" type format.

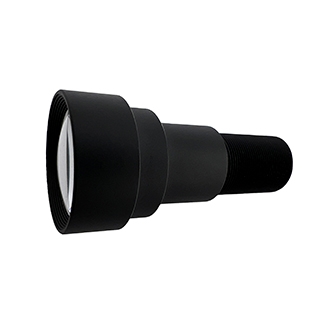

Image of >12MP 50mm M12 Lens Telephoto Low Distortion

The CIL051 is a low distortion telephoto 50mm M12 lens which provides a 7° Horizontal Field of View on 1/2.3" type sensors. The lens is suitable for 1/1.7" image sensors with 10MP and up to 2/3" type format.

Telephoto Field of View: A long 50mm EFL for machine vision and telephoto applications.

Large Format: Suitable for large format sensors up to 2/3" such as IMX392 and IMX250

Lens Parameter Performance Detail

Part Number     CIL051

Format Type      2/3"

EFL                        50mm

F#                          2.8

Resolution          12MP

Field of View     8.5° @ 7.5mm

                               Calculate using our FoV Calculator

Image Circle      9.4mm

Distortion           -0.2% TV

Weight                18.1g

Construction     All Glass, All Metal

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.
