>25MP 12mm C-Mount Lens Adjustable Aperture
Model: CIL552-F2.8-CMANIR
The CIL552 is a 12mm C-Mount lens for up to 25MP 1.2" sensor format type with pixel pitch of 2.74um
12mm C-Mount Lens 1.2" 25MP
The CIL552 is a 12mm C-Mount lens for up to 25MP 1.2" sensor format type with pixel pitch of 2.74um such as IMX541. The aperture of F/2.8 is adjustable to F/16 and the minimum object distance is 125mm. Please note that this lens does not have front filter threads.
25MP Resolution: Suitable for 2.74um pixel pitch sensors
Adjustable Aperture: An F/2.8-F/16 adjustable aperture allows for optimized performance.
| Lens Parameter | Specification |
|---|---|
| Part Number | CIL552 |
| Format Type | 1.2" |
| EFL | 12mm |
| F# | 2.8 - 16 Adjustable |
| Resolution | 25MP (2.74um) |
| Field of View | 78° @ 19.4mm Calculate FoV and Angular Resolution |
| Image Circle | 19.4mm |
| Distortion | -0.22% from Rectilinear |
| Weight | 205g |
| Filter | None |
| Working Distance | 100mm~infinity |
| Construction | All Glass |
Other Products from Commonlands LLC

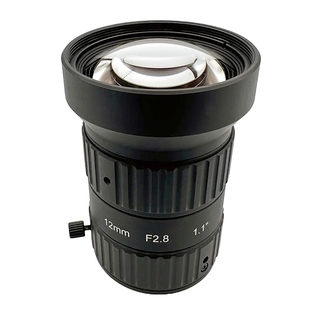

1.1 inch High Resolution Adjustable Aperture 12mm C-Mount Lens
The CIL542 is an IR Corrected 12mm C-Mount Lens for up to 25MP 1.1" sensors with pixel size as small

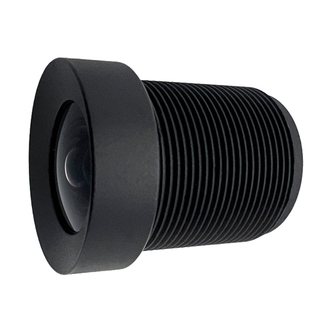

5MP Low Distortion 5mm M12 Lens
