>8MP 35mm M12 Lens Telephoto
Model: CIL350-F2.4-M12A650, CIL350-F2.4-M12ANIR
The CIL350 is a low distortion telephoto 35mm M12 lens which provides an 11° Horizontal Field of View on 1/2.3" type sensors. The lens is suitable for 1/1.7" image sensors with 10MP and up to 2/3" type format.
Telephoto 35mm M12 Lens
The CIL350 is a low distortion telephoto 35mm M12 lens which provides an 11° Horizontal Field of View on 1/2.3" type sensors. The lens is suitable for 1/1.7" image sensors with 10MP and up to 2/3" type format.
Telephoto Field of View: A long 35mm EFL is suitable for machine vision and telephoto applications.
Large Format: Suitable for large format sensors up to 2/3" such as IMX485 and IMX260
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL350 |
| Format Type | 1/1.2" |
| EFL | 35.0mm |
| F# | 2.4 Fixed |
| Resolution | 10MP |
| Field of View | 11° @ 6.2mm Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 10mm |
| Distortion | 0% TV |
| Weight | 14.3g |
| IR Cut-Off Filter | P/N With: CIL350-F2.4-M12A650 P/N Without: CIL350-F2.4-M12ANIR |
| Construction | All-glass all-metal |
Other Products from Commonlands LLC
4mm F-theta Wide-Angle M12 Lens
The CIL340 is a wide-angle 4.0mm M12 lens provides 111° Horizontal Field of View on 1/1.8" sensors. The fast F/2.0, 0% FT distortion, and 8MP-12MP makes this lens optimal for high performance surveillance cameras using Sony's STARVIS sensors.

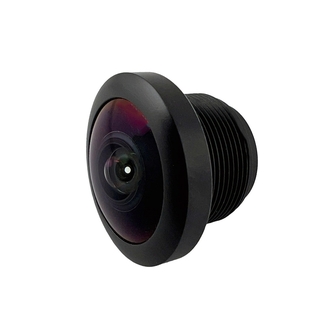

1mm Stereographic M12 Fisheye Lens
