1/2.5

Model: CIL825-F2.4-M12B650, CIL825-F2.4-M12ANIR

Commonlands LLC

Request a Quote

The CIL825 is a 2.5mm M12 lens which provides a 115° Diagonal Field of View on 1/3" sensors.

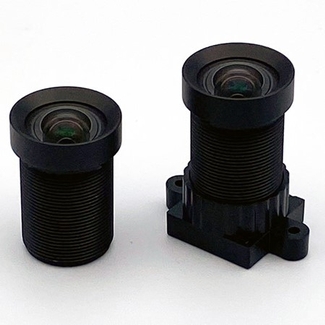

Image of 1/2.5

Lens Parameter Performance Detail

Part Number     CIL825

Format Type      1/2.5"

EFL                        2.5mm

F#                          2.0 and 2.4 available

Resolution          8MP (F/2.4)

Field of View     120° @ 6.3mm

                               Calculate using our FoV Calculator

Image Circle      >=7.2mm

Distortion           <20% TV

Weight                3.9g

Construction     Hybrid Glass/Plastic, with AL6061 Barrel

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

1/2.7 Image

1/2.7

The CIL821 is a 12MP+ 2.1mm miniature S-Mount lens which provides a 125° Horizontal Field of View on 1/2.8" sensors.

Continue
1/1.7

1/1.7" 5.5mm M12 Lens for up to 4K+ S-Mount Cameras

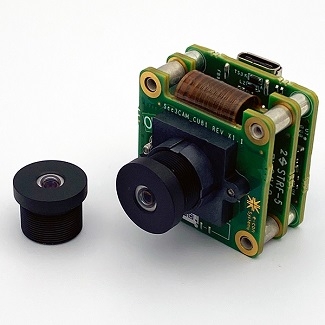

The CIL056 is a 5.5mm M12 lens which provides a 64° HFoV on 1/2.3" type sensors like the IMX477. This board lens can be used on up to 1/1.7" sensors and has a small form factor.
