1/2.3" 4.5mm M12 Lens for up to 1/1.9" such as MT9P031 | CIL045

Model: CIL045-F3.5-M12A650, CIL045-F3.5-M12ANIR

Commonlands LLC

Request a Quote

The CIL045 is a 4.5mm M12 lens which provides a 70° HFoV on 1/2.3" type sensors. This board lens can be used on up to 1/1.9" sensors and has <1% TV Distortion.

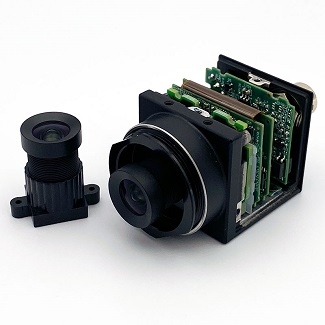

Image of 1/2.3

Lens Parameter Performance Detail

Part Number     CIL045

Format Type      1/2.3"

EFL                        4.5mm

F#                          3.5 Fixed

Resolution          5MP+

Field of View     70° @ 6.3mm

                               Calculate using our FoV Calculator

Image Circle      8.0mm

Distortion           <1% TV

Weight                4g

Construction     Hybrid Glass/Plastic, with AL6061 Barrel

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

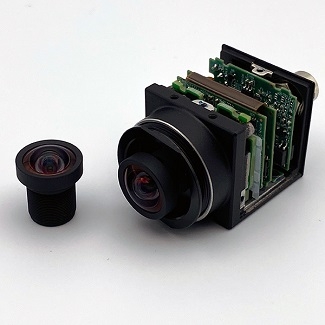

M12 Lens | 4K+ 2.7mm Wide-Angle No-Distortion Lens | CIL027 Image
