1/1.7 inch Low Distortion Wide-angle 3.3mm M12 Lens

Model: CIL030-F2.1-M12A650, CIL030-F2.1-M12ANIR

Commonlands LLC

Request a Quote

The CIL030 is a low distortion 3mm M12 lens which provides a 115° Horizontal Field of View on 1/1.7" sensors. The lens is suitable up to 1/1.6" format type such as AR0821 and IMX226. Wide-Angle FoV. 8MP+ Resolution.

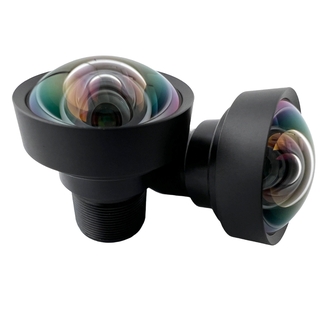

Image of 1/1.7 inch Low Distortion Wide-angle 3.3mm M12 Lens

Lens Parameter Performance Detail

Part Number     CIL023

Format Type      1/1.7"

EFL                        3.0mm

F#                          2.1 Fixed

Resolution          8MP+

Field of View     115° @ 8.0mm

                               Calculate using our FoV Calculator

Image Circle      9.4mm

Distortion           <8% TV

Weight                12.7g

Construction     8E, AL6061

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

2/3 inch 25mm Adjustable Aperture C-Mount Lens Image

2/3 inch 25mm Adjustable Aperture C-Mount Lens

The CIL525-F1.4-CMANIR is a fast 25 mm C-Mount lens for up to 5MP 2/3" sensors with 3.45um pixel pitch.

Continue

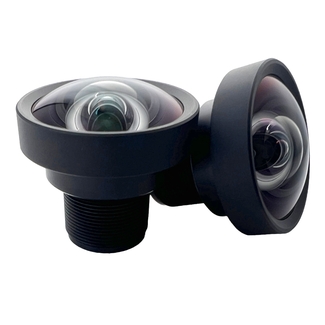

1/2.3 inch Wide-Angle Low Distortion 2.2mm M12 Lens Image
