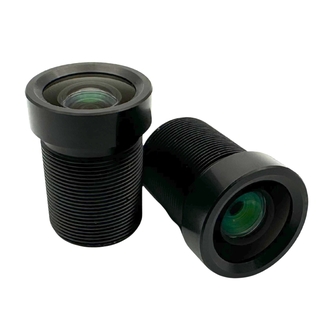

8mm Low Distortion M12 Lens
Model: CIL083-F2.8-M12A650, CIL083-F2.8-M12ANIR
The CIL083 is an 8mm lens for up to 6MP-8MP 1/1.8" sensors.
Low Distortion 8mm M12 Lens
The CIL083 is an 8mm lens for up to 6MP-8MP 1/1.8" sensors. This M12 lens is compact and cost effective option, made possible by a hybrid glass-plastic design.
Large Format: Suitable for up to 1/1.8" Type cameras, with a 8.8mm image circle.
Compact Size: TTL of 24.4mm and maximum diameter of 14mm for a compact design.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL083 |
| Format Type | 1/1.8" |
| EFL | 8.1mm |
| F# | 2.85 Fixed |
| Resolution | 6-8MP+ |
| Field of View | 52° @ 7.6mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 9.0mm |
| Distortion | <1% |
| Weight | 7g |
| IR Cut-Off Filter | P/N With: CIL083-F2.8-M12A650 P/N Without: CIL083-F2.8-M12ANIR |
| Construction | Hybrid Glass+Plastic, Aluminum |
Other Products from Commonlands LLC
2.7mm Wide-Angle M12 Lens
The CIL327 is a 8MP wide-angle 2.7mm M12 lens which provides a 125° Horizontal Field of View on 1/2.6" sensors.

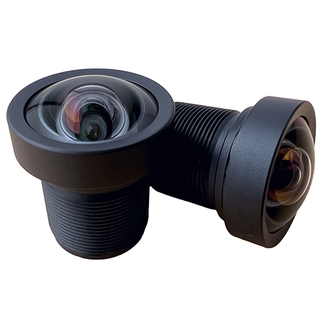

2.7mm Low Distortion M12 Lens
The CIL027 is a 2.7mm wide-angle low-distortion M12 lens which provides a 99° Horizontal Field of View on 1/2.3" sensors. Wide-Angle FoV: Achieve a wide 100° HFoV on 1/2.3" type sensors. Thermal Stability: Optical Resolution suitable for IMX178.
