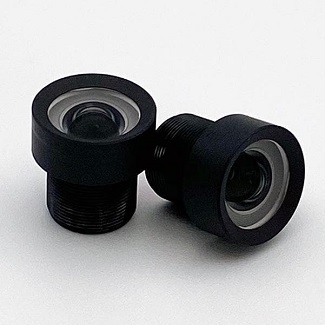

1/1.7" 6mm M12 Lens for up to 4K+ 1/1.7" S-Mount Cameras | CIL060

Model: CIL060-F2.8-M12IR, CIL060-F2.8-M12NIR

Commonlands LLC

Request a Quote

The CIL060 is a 6.0mm M12 lens which provides a 55° HFoV on 1/2.3" type sensors like the IMX477. This board lens can be used on up to 1/1.7" sensors and has <1% TV Distortion.

Lens Parameter Performance Detail

Part Number CIL060

Format Type 1/1.7"

EFL 6mm

F# 2.8 Fixed

Resolution 3-5MP

Field of View 55° @ 6.2mm

Calculate using our FoV Calculator

Image Circle 9.5mm

Distortion <2% TV

Weight 6.0g

Construction Hybrid Glass/Plastic with Aluminum Barrel

Click here for full documentation.

An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

S-Mount Lens with 4K+ Wide-Angle No-Distortion | 2.6mm CIL028

The CIL028 is a wide-angle no-distortion 2.6mm M12 lens suitable for up to 4K+ 1/2" sensors. The lens provides 100° HFoV on 1/2.3" sensors and is great for video-conferencing systems and sensors like the Sony IMX57.

Continue

1/1.7

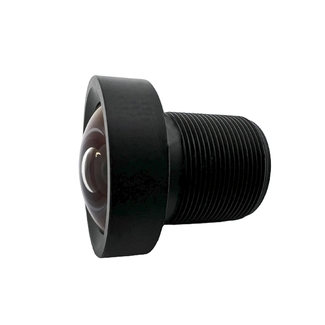

The CIL344 is a wide-angle 4.4mm M12 lens provides 100° Horizontal Field of View on 1/1.8" sensors.
