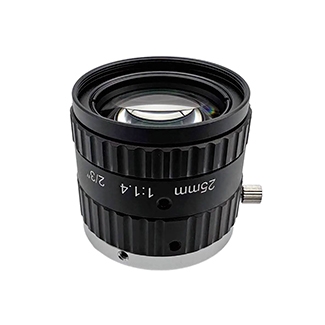

2/3 inch 25mm Adjustable Aperture C-Mount Lens
Model: CIL525-F1.4-CMANIR, CIL525-F1.4-CMRNIR, CIL525-F2.0-CMRNIR, CIL525-F2.8-CMRNIR
The CIL525-F1.4-CMANIR is a fast 25 mm C-Mount lens for up to 5MP 2/3" sensors with 3.45um pixel pitch.
25mm C-Mount Lens 2/3" 5MP
The CIL525-F1.4-CMANIR is a fast 25 mm C-Mount lens for up to 5MP 2/3" sensors with 3.45um pixel pitch. The aperture is adjustable from F/1.4 to F/16 and the lens has a minimum working distance of 150mm.
5MP-8MP Resolution: Suitable for 3.45um pixel pitch at F/1.4 and 2.74um at F/2.8
Low F#: An fast maximum F# of F/1.4 for demanding high speed machine vision applications.
"R" Ruggedized Version Available: Build a vibration-resistant computer vision camera.
| Lens Parameter | Specification |
|---|---|
| Part Number | CIL525 |
| Format Type | 2/3" |
| EFL | 25mm |
| F# | CMA: 1.4 - 16 Adjustable CMR: 1.4, 2.0, or 2.8 Fixed |
| Resolution | 5MP (3.45um) |
| Field of View | 25° @ 11mm Calculate FoV and Angular Resolution |
| Image Circle | 11mm+ |
| Distortion | -0.9% from Rectilinear @ 0.5m |
| Weight | 63g |
| Filter | M30x0.5 |
| Working Distance | 100mm~infinity |
| Construction | All Glass |
Other Products from Commonlands LLC
1/2.5 inch 6mm IP69K-Rated M12 Lens
The CIL061 is a 6mm M12 lens suitable for up to 3MP 1/2.5" sensors. It's <3% distortion and F/1.8 makes it great for ADAS and computer vision applications on sensors like Sony's IMX290 and AR0234. Great low light performance for

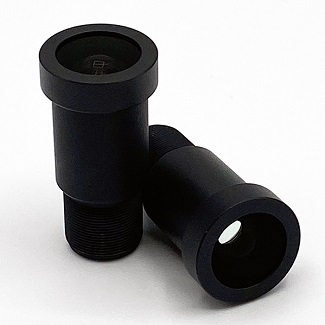

1/1.8 inch 7.6mm Wide-Angle M12 Lens
