3.5mm Large Format M12 Lens

Model: CIL334-F2.2-M12C660, CIL334-F2.2-M12CNIR

Commonlands LLC

Request a Quote

The CIL334 is a 5MP+ wide-angle 3.5mm M12 lens which provides a 140° Horizontal Field of View on 1/1.8" 16:9 sensors. A short 19.6mm total track length and weight of 4.3g is ideal for aerial robotics.

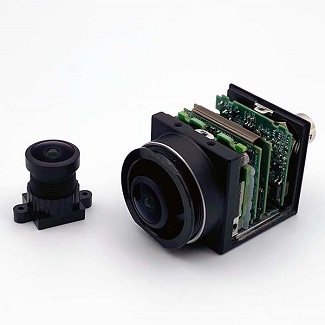

Image of 3.5mm Large Format M12 Lens

Large Format 3.5mm M12 Lens

The CIL334 is a 5MP+ wide-angle 3.5mm M12 lens which provides a 140° Horizontal Field of View on 1/1.8" 16:9 sensors.

Large Format: Achieve a Wide Angle Field of View on up to 1/1.7" type sensors.

Small Form Factor: A short 19.6mm total track length and weight of 4.3g is ideal for aerial robotics.

IP67 and Hydrophobic: Variant "C" is IP67 rated with hydrophobic coating on L1S1.

Lens Parameter Performance Detail

Part Number     CIL334

Format Type      1/1.7"

EFL                        3.5mm

F#                          2.2 Fixed

Resolution          5-6MP

Field of View     140° @ 8.0mm

                               Calculate using our FoV Calculator

Image Circle      9.6mm

Distortion           -8% F-Θ

Weight                4.3g

Construction     Hybrid Glass/Plastic

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.
