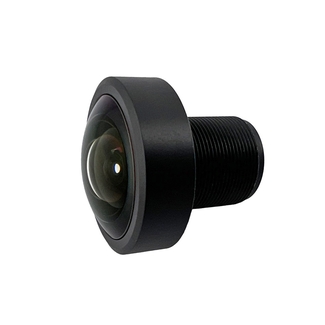

2mm IR Corrected Fisheye M12 Lens
Model: CIL239-F2.0-M12A650, CIL239-F2.0-M12ANIR
The CIL239 is an IR Corrected 2mm M12 Fisheye lens that can be used with up to 12MP 1/1.8" sensors
186°@5.2mm IR Corrected Fisheye M12 Lens
The CIL239 is an IR Corrected 1.8mm M12 Fisheye lens that can be used with up to 12MP 1/1.8" sensors such as IMX334.
>180° FoV: Maximize your camera's viewing angle with a large 186° field of view at 5.2mm image circle.
IR Corrected: Less than 8 microns of shift from 550nm to 850nm makes the CIL239 amazing for Day/Night Applications.
>180° FoV: Maximize your camera's viewing angle with a large 186° field of view at 5.2mm image circle.
IR Corrected: Less than 8 microns of shift from 550nm to 850nm makes the CIL239 amazing for Day/Night Applications.
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL239 |
| Format Type | 1/3" to 1/1.8" |
| EFL | 1.8mm |
| F# | 2.0 Fixed |
| Resolution | 8MP-12MP |
| Field of View | 186° @ 5.2mm image circle Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 5.2mm |
| Distortion | -13% F-Θ |
| Weight | 9.6g |
| IR Cut-Off Filter | P/N With: CIL239-F2.0-M12A650 P/N Without: CIL239-F2.0-M12ANIR |
| Construction | All Glass, Metal |
Other Products from Commonlands LLC
1/1.7 inch 3mm M12 Lens Low Distortion Wide-angle
The CIL030 is a low distortion 3mm M12 lens which provides a 115° Horizontal Field of View on 1/1.7" sensors. The lens is suitable up to 1/1.6" format type such as AR0821 and IMX226. Wide-Angle FoV. 8MP+ Resolution.
2/3 inch 25mm 12MP C-Mount Lens
The CIL534 is a 25mm C-Mount Lens that is good for Machine Vision Cameras up to 2/3" Format with 10-12MP
