CIS Corporation is a development-oriented manufacturer of cameras for use in various applications. The advanced CIS camera line includes high-performance cameras with CIS original ISP, state-of-the-art “Clairvu engine™” for superb imaging quality and high speed processing. We provide FPGA IP or software license as well as compact size, high-resolution, high-speed cameras. The product design philosophy of CIS is driven by industry requirements and offers products with the most advanced technology.
Product filed under:
CoaXPress CoaXPress

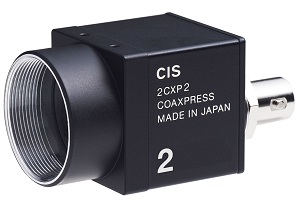

VGA resolution, CoaXPress interfaced camera utilizing CMOS image sensor.
Model: VCC-VCXP5M/VCC-VCXP5R
The enclosure of VCC-VCXP5 is 29 mm cubic footprint, and its compact size is suitable for embedded applications such as robot vision, drone installation, and machine vision. Also, it can transfer images at 523 fps at 8 bit output with global trigger shutter operation, so that it can capture objects on the production line such as PCB, foods, medicines and small parts clearly. Furthermore, the functions such as ROI, defective pixel correction, shading correction, Horizontal & Vertical flip, etc. are installed to make easier to see the region of the object you want to see, and contributing to higher inspection efficiency. For further information, please contact our sales division. VCC-VCXP5M (Monochrome) / VCC-VCXP5R (Color) Interface: CoaXPress Sensor: 1/2.9type CMOS / SONY Pregius IMX287 Unit cell size: 6.9 x 6.9 µm Effective Pixels: 728(H) x 544(V) Resolution: VGA Frame Rate: 523fps (8bit) Shutter Speed: OFF~1/20,000s Pixel Clock: 74.25MHz Lens Mount: C mount Dimensions: W29 x H29x D29 mm Usage of this product Semiconductor inspection, AOI, PTP inspection, FPD inspection, parts inspection, medical inspection, measurement, appearance inspection, robot vision, drone, etc.
