CIS Corporation is a development-oriented manufacturer of cameras for use in various applications. The advanced CIS camera line includes high-performance cameras with CIS original ISP, state-of-the-art “Clairvu engine™” for superb imaging quality and high speed processing. We provide FPGA IP or software license as well as compact size, high-resolution, high-speed cameras. The product design philosophy of CIS is driven by industry requirements and offers products with the most advanced technology.
Product filed under:
Cameras & Smart Cameras Cameras & Smart Cameras
Increase the resolution of CMOS image sensor 16 times higher by installing the high-resolution and high-speed patented actuator in the camera.

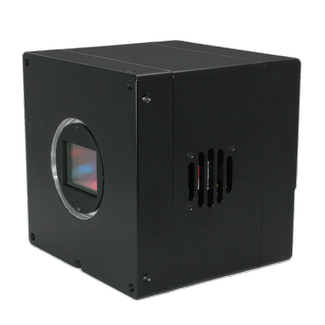

Model: VCC-25CXP1MPS(B/W) / VCC-25CXP1RPS(Color)
[CIS Pixel-shift Technology]
This is a technology which increase the resolution of image sensor by shifting X and Y axes between the sensor’s pixel pitch 4 times in each direction, capturing images at each position, and synthesizing them to create a single image.
With VCC-25CXP1MPS, equivalent to 100M pixels resolution can be acquired by 4 times shifting, and equivalent to 400M pixels resolution can be acquired by 16 times shifting.
The camera is suitable for the applications which requires super-high resolution such as inspection, research/analysis, medical, archive, etc.
For more information, please download our product catalog or contact our sales division.
[SPEC]
Model name: VCC-25CXP1MPS (B/W) / VCC-25CXP1RPS (Color)
Interface: CXP3-CXP6×4 lanes
Unit cell size: 4.5µm×4.5µm
Sensor size: APS-H CMOS Global shutter
Effective pixels: 5120(H)×5120(V)
Resolution: [B/W] 25M·100M(4 times shifting)·400M(16 times shifting)
[Color] 25M·25M(Equivalent to 3CMOS True color)·104M(Equivalent to 3CMOS?? True color)
Frame rate: 81.8fps(CXP6·8bit at 25M), 11.1fps(CXP6·8bit at 100M), 2.7fps(CXP6·8bit at 400M)
Lens mount: M48 mount / F mount
Dimensions: 65(W)×65(H)×93.3(D)mm
Other features: Build-in Piezo actuator drive unit
*Please contact our sales division for the details on the product and loaning of evaluation unit.
