Since 1993, BitFlow has been developing industrial frame grabbers and software specializing in interfacing to cameras with high data/frame rates; and running in applications where every CPU cycle is precious. We currently offer CXP, CL, and Differential frame grabbers.
Product filed under:
Frame Grabbers & Imaging Boards Frame Grabbers & Imaging Boards

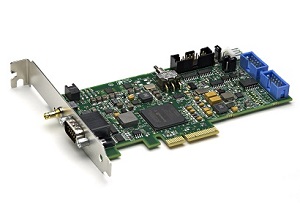

- Half-Height, Half-Size x2 PCI Gen 2.0 Express Board
- Half height bracket available
- CoaXPress 1.1 compliant (supports 1.0 and 1.1. cameras)
- Supports one CXP-6 camera
- Supports CXP speeds from 1.250 to 6.250 Gb/S
- Uses DIN 1.0/2.3 connectors
- Provides power for camera (up to 13 Watts per link)
- Provides Safe Power, full protection from all power line faults
- Cameras are Plug and Play with automatic link speed detection
- Cable lengths of up to 135 meters are supported
- PCI Express x2 Gen 2.0 interface
- Compatible with PCI Express Gen 1.0 slots
- I/O connector on bracket
- Compatible with BitBox external I/O module
- Highly deterministic, low latency frame grabber to camera trigger
- FlowThru technology means no on-board memory is needed
- StreamSync acquisition engine optimizes synchronization between acquisition and DMA
- StreamSync buffer manager maximize DMA channel efficiency
- Acquire variable length frames from line scan cameras
- Acquire image sequences well beyond the 4GB barrier
- No frame rate limit
- Triggers and encoders for external control of acquisition
- Programmable signal generator for camera control
- Quadrature encoder support including sophisticated triggering schemes
- Encoder divider/multiplier
- Drivers, utilities and examples for Windows and Linux
- Supported on both 32-bit and 64-bit platforms
- Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
- Full GenICam support for control and capture
- RoHS compliant
