Since 1993, BitFlow has been developing industrial frame grabbers and software specializing in interfacing to cameras with high data/frame rates; and running in applications where every CPU cycle is precious. We currently offer CXP, CL, and Differential frame grabbers.
Product filed under:
Frame Grabbers & Imaging Boards Frame Grabbers & Imaging Boards

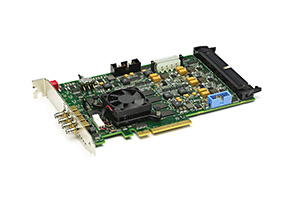

- Half-Size x8 PCI Express Gen 3.0 frame grabber
- CoaXPress 1.0/1.1/2.0 compliant
- Supports one to four CXP-12 cameras
- Supports multi-link CXP-12 cameras (up to four CXP links)
- Supports CXP speeds from 3.25 to 12.50 Gb/S
- Supports simultaneous capture from four CXP-12 cameras
- Low speed uplink supported on all links
- Uses micro BNC connectors
- Provides power for all cameras (up to 13 Watts per link)
- Provides Safe Power, full protection from all power line faults
- Cameras are Plug and Play with automatic link speed and camera parameter detection
- Cable lengths of up to 100 meters are supported
- Cameras can be accurately synchronized, or can be completely independent
- Compatible with all PCIe x8/x16 slots Gen 1.0/2.0/3.0
- Separate I/O for each camera
- Highly deterministic, low latency frame grabber to camera trigger
- Supports simultaneous command and control to all cameras
- Windows “sees” a separate virtual frame grabber for each camera
- StreamSync technology maximizes data through-put while minimizing image latency
- Acquire variable length frames from line scan cameras
- Triggers and encoders for external control of acquisition
- Drivers, utilities and examples for Windows and Linux
- Supported on both 32-bit and 64-bit platforms
- Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
- Full GenICam support for camera control and capture
- Programmable signal generator for camera control (independent for each camera)
- Quadrature encoder support including sophisticated triggering schemes
- Encoder divider/multiplier
- RoHS compliant
- Supports BitFlow BitBox
