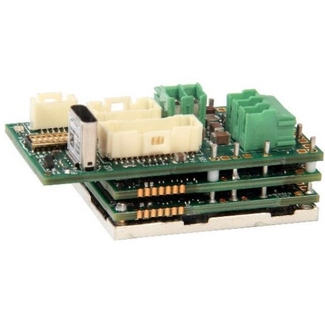

The FXM060-10-RM is an Extended Environment single-axis servo drive and integration board assembly for a FXE060-10-RM FlexPro® series servo drive with IMPACT™ architecture.
The FXM060-10-RM is an Extended Environment single-axis servo drive and integration board assembly for a FXE060-10- RM FlexPro® series servo drive with IMPACT™ architecture. Connections to the controller, motor, power, and feedback are simplified through the standard connectors featured on the board. The FXM060-10-RM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, stepper motors, and AC induction motors. The drive accepts a variety of external command signals, or can use the built-in Motion Engine, an internal motion controller used with Sequencing and Indexing commands. Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices. The FXM060-10-RM utilizes RS485/232 network communication and is configured via USB. All drive and motor parameters are stored in non-volatile memory. IMPACT™ (Integrated Motion Platform And Control Technology) combines exceptional processing capability and highcurrent components to create powerful, compact, feature-loaded servo solutions. IMPACT™ is used in all FlexPro® drives and is available in custom products as well. The FXM060-10-RM conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.
Ambient Operating Temperature Range: -40°C to +95°C (-40°F to +203°F)
Thermal Shock: -40°C to +95°C (-40°F to +203°F) within 3 min.
Relative Humidity: 0 to 95%, Non-Condensing
Vibration: 25 Grms for 5 min. in 3 axes
Altitude: -400m to +25000m
Contaminants: Pollution Degree 2
The FXM060-10-RM is ideal for applications in the Automated Guided Vehicle (AGV) industry.
See the product detail page for the FXM060-10-RM on the Advanced Motion Controls website.
Features
 |
Command Sources
|
Motors Supported
|
|
Operating Modes
|
Inputs/Outputs
|
Feedback Supported
|
