ADVANCED Motion Controls Product

FXE060-10-RM

Model: FXE060-10-RM

ADVANCED Motion Controls

The FXE060-10-RM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, stepper motors, and AC induction motors.

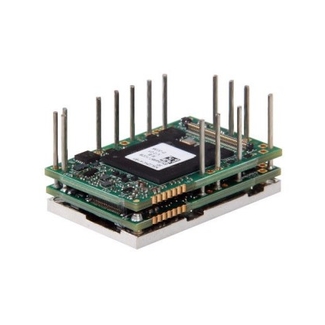

Image of FXE060-10-RM

The FXE060-10-RM is a FlexPro® series Extended Environment servo drive with IMPACT™ architecture. The FXE060-10-RM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo motors, stepper motors, and AC induction motors. The drive accepts a variety of external command signals, or can use the builtin Motion Engine, an internal motion controller used with Sequencing and Indexing commands. Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices. The FXE060-10-RM features an RS485/232 interface for network communication and USB connectivity for drive configuration and setup. All drive and motor parameters are stored in non-volatile memory. IMPACT™ (Integrated Motion Platform And Control Technology) combines exceptional processing capability and high-current components to create powerful, compact, feature-loaded servo solutions. IMPACT™ is used in all FlexPro® drives and is available in custom products as well. The FXE060-10-RM conforms to the following specifications and is designed to the Environmental Engineering Considerations as defined in MIL-STD-810F.

Ambient Operating Temperature Range: -40°C to +95°C (-40°F to +203°F)

Thermal Shock: -40°C to +95°C (-40°F to +203°F) within 3 min.

Relative Humidity: 0 to 95%, Non-Condensing

Vibration: 25 Grms for 5 min. in 3 axes

Altitude: -400m to +25000m

Contaminants: Pollution Degree 2

The FXE060-10-RM is ideal for application in the Military/Defense industry.

See the product detail page for the FXE060-10-RM onm the Advanced Motion Controls website.

Features

Command Sources

  • Over the Network
  • ±10V Analog
  • Sequencing
  • Indexing
  • Jogging
  • Step & Direction
  • Encoder Following

Motors Supported

  • Three Phase
  • Single Phase
  • Stepper
  • AC Induction

Operating Modes

  • Current
  • Velocity
  • Position

Inputs/Outputs

  • 4 Programmable Digital Inputs
  • 3 Programmable Digital Outputs
  • 1 Programmable Analog Input

Feedback Supported

  • Absolute Encoder
    • BiSS C-Mode
    • EnDat 2.2
    • Tamagawa/Nikon
  • Incremental Encoder
  • Hall Sensors
  • Aux Incremental Encoder
  • Tachometer (±10V)
