Largest Telescope in the World Driven by 2000+ PI Actuators
Auburn, MA – High atop the Cerro Armazones in the harsh but extremely dry environment of the Chilean Atacama Desert, more than 2000 custom hybrid actuators will adjust 798 quarter ton segments in the primary mirror of the Extremely Large Telescope (ELT). As a leader in precision motion control solutions, PI (Physik Instrumente) designed a new type of actuator that would meet the extreme requirements and win the European South Observatory (ESO) contract.
Hybrid Actuator Concept Solves the Nanometer Precision - High Load - Low Heat Conundrum

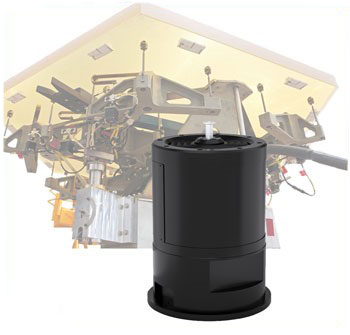

PI’s ultra-precision actuator was developed to meet requirements such as: tracing performance better than 2nm RMS, force variation 0N to 900N, 15mm travel, minimized heat dissipation. Several concepts were simulated and tested before a winner was picked. The best results were achieved with a hybrid design based on the combination of piezo actuator, brushless motor, linear encoder and a hybrid controller to drive both the brushless motor and piezo actuator simultaneously based on the position feedback of an optical position sensor providing sub-nanometer resolution. Three actuators are required per segment.
Why is this Precision Required?
In order to perform similar to one 39m mirror (it is not feasible to make a single mirror of that size), all segments have to be aligned to each other to within nanometers all the time. The exact position of the mirror segments is influenced by several factors such as wind load, distortions, and vibration from the telescope structure, temperature fluctuations and varying gravity effects during tracking motions of the telescope. Smallest alignment errors between the mirror segments will degrade the optical performance of the telescope.
How Large is Extremely Large?
Touted as the largest telescope in the world, the 39 meter diameter ELT individual hexagonal mirrors measure 1.4 meters across and weigh about 500lbs each. The large aperture directly determines the light-collecting area, which in turn defines the exposure time. More area means that for a given amount of exposure time, the telescope can detect more distant (fainter) stars and look deeper into the universe.
With its total surface area of close to 1000 square meters, the ELT is supposed to collect around 100 million times more light than the human eye and boasts about 250 times the light gathering area of the Hubble Space Telescope.
The ELT is scheduled to see its first light in 2024.
Standard and Custom
PI has in-house engineered solutions with over 4 decades of experience working with customers to provide products that meet application demands, and can quickly modify existing product designs or provide a fully customized OEM part to fit the exact requirements of the application.
PI is a leading manufacturer of air bearing stages, piezoelectric solutions, precision motion control equipment, and hexapod parallel-kinematics for semiconductor applications, photonics, bio-nano-technology and medical engineering. PI has been developing and manufacturing standard & custom precision products with piezoceramic and electromagnetic drives for 4 decades. The company has been ISO 9001 certified since 1994 and provides innovative, high-quality solutions for OEM and research. The PI group employs more than 1,000 people worldwide in 15 subsidiaries and R&D / engineering centers on 3 continents.
