Yaskawa Releases the Z1000U HVAC Matrix Drive

Matrix Technology Provides Harmonic Mitigation, Power Factor Control, and Energy Savings in a Single Compact Package

The Drives & Motion Division of Yaskawa America, Inc. announces the release of the Z1000U HVAC Matrix Drive.

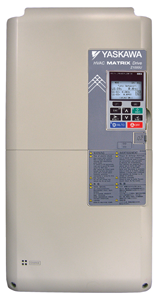

The HVAC Matrix drive (Z1000U) provides extremely low harmonic distortion in a space-saving design, along with the same HVAC-specific features as the standard Z1000. This single component solution achieves excellent low distortion levels all by itself, completely without the need for additional countermeasures such as passive filters or multi-pulse arrangements.

Unlike conventional drives, Yaskawa’s matrix technology employs a system of 9 bi-directional switches that are arranged in a matrix to convert a three-phase AC input voltage directly into a three phase AC output voltage.  It eliminates the need for a rectifying circuit and a DC bus that are used in traditional AC drive inverters.  Matrix technology reduces total harmonic distortion levels to less than the IEEE compliance standard of 5%, without the need for reactors and filters. The result is a smoother current waveform that reduces stress on the system power supply and infrastructure. Additionally, reduced distortion improves displacement power factor to 0.98 through the entire load and speed range, reducing energy costs.

Not only does the HVAC Matrix drive provide outstanding harmonic performance, but being a member of the Z1000 family, it provides the same user experience for those already familiar with commissioning and maintaining the standard Z1000.

Other features of the HVAC Matrix Drive include the following:
