Fakra Connector Inspection in Production

Introduction

Fakra connectors are widely used in automotive electronics for the transmission of sensitive signal data such as GSM, GPS, or camera information. Given their role in safety and communication systems, these components must meet stringent quality requirements. For manufacturers producing high volumes in fully automated lines, ensuring consistent reliability presents a significant challenge.

To address this, a leading supplier of Fakra connectors has implemented senswork’s inspection technologies, integrating them directly into their production systems.

Application and Solution

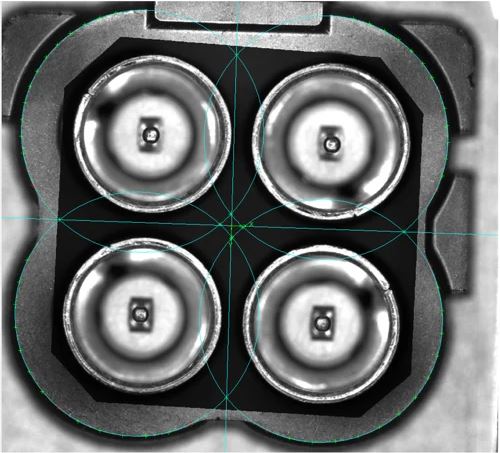

senswork provided an inspection solution based on a sophisticated system equipped with seven high-resolution cameras, each dedicated to evaluating critical features of Fakra connectors during production. These cameras verify essential parameters such as plug coding, eccentricities, tumble or wobble circuits, and pluggability, the latter being assessed through the use of virtual connector gauges. In addition to these core checks, the system evaluates many other quality characteristics to ensure that each connector complies with the rigorous standards required in the automotive industry.

To further enhance efficiency, the entire inspection process is managed by senswork’s VisionCommander®. This software enables centralized control and parameterization of all inspections within the production machine. By integrating hardware with software, the solution ensures that inspection results are consistent, transparent, and easily adaptable to changing production requirements.

Benefits

The deployment of senswork’s inspection system delivers significant advantages:

• Turnkey system with integrated seven-camera setup.
• Centralized management and easy parameterization of all inspections through VisionCommander®.
• Non-contact measurement, ensuring no wear, tear, or risk of damage to delicate connectors.

Conclusion

By combining camera technology with software integration, senswork provides a powerful solution for ensuring the quality of Fakra connectors in high-volume automotive production. This case demonstrates how automated inspection secures reliability, reduces defects, and guarantees compliance with the automotive industry’s rigorous standards.
