Turnkey Manual Test Station Inspects Fakra Connector Assembly
POSTED 11/26/2024

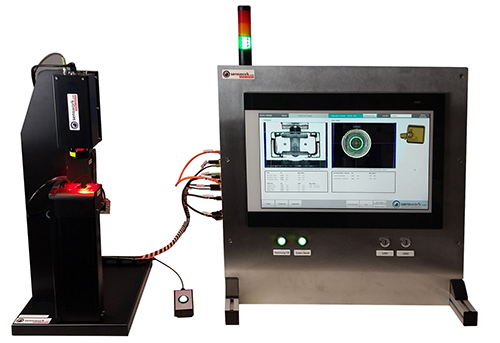

Turnkey Manual Test Station for Fakra Connector Inspection
Challenge
Fakra connectors, used in automotive and telecommunications applications, require precise quality control to validate both their PCB connections and external interface alignment. The challenge was to design a modular, adaptable solution capable of accommodating various connector assemblies while providing inspection on both the PCB and interface sides.
Solution

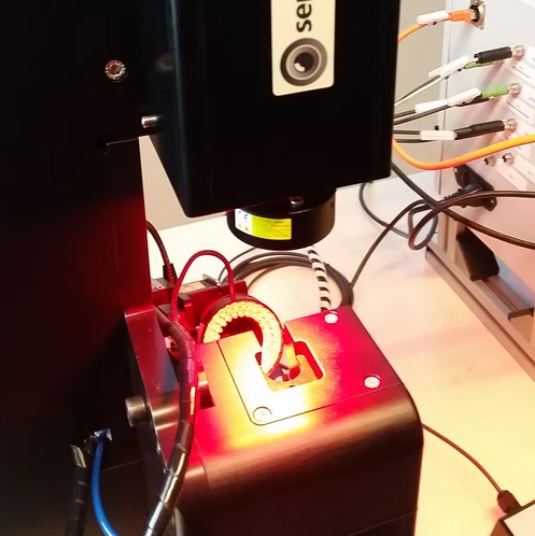

To meet these requirements, we developed a turnkey manual test station equipped with two high-resolution cameras:
- 25-megapixel camera for inspecting the PCB side, ensuring circuit integrity and solder quality.
- 5-megapixel camera for examining the interface side, checking for proper alignment and connector integrity.
The inspection system features an adjustable viewing direction for the interface camera, enabling precise alignment for various connector types. Its modular construction allows easy reconfiguration for inspecting different Fakra assemblies. Additionally, the system uses interchangeable part cameras, making it highly adaptable for future requirements.
Don't Miss These Industry-Leading Events!
Results
The turnkey manual test station has streamlined the inspection process for Fakra connectors, delivering consistent and reliable results. Its adaptability and precision provide long-term value for manufacturers who handle diverse connector assemblies.
Discover how our VisionUnit can simplify your inspection needs.
