EyeMIO-v2 New PLC-IO-Module

POSTED 07/09/2015

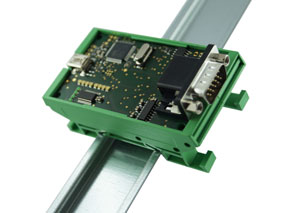

EyeMIO-v2EVT presents the new revised EyeMIO-v2. The EyeMIO is an PLC-IO-Module for industrial use. In combination with machine vision systems by EVT, it takes on the control of the peripheral devices and therefore is an interface between the image processing system and the production plant.

The EyeMIO-v2 offers four digital in- and outputs, which can be operated DC-isolated to the electronic. It has an RS232 and USB interface. Via the USB Block-Device Interface extremely fast IO requests are possible and this also directly on USB level. This advantage is speed allows it to operate or read inputs and outputs much faster. Additionally, the RS232 parameter, such as baud rate, even parity and number of stop bits can be configured individual via USB.

Each of the four digital I/Os is PWM compatible. In addition, the EyeMIO-v2 can also be configured with the EyeMIO Manager on customer request.

A once configured EyeMIO keeps its data and can be integrated into a production plant. This advantage offers a maximum in flexibility. Also, the revised arrangement of LEDs makes it easier to check errors or the communication.

The new EyeMIO additionally has a AES128 Crypto Chip with a one-off serial number and the possibility to use it for the licensing.
