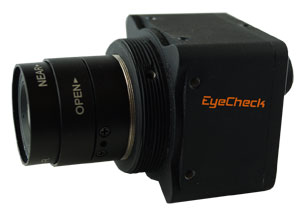

EyeCheck 7xxx Smart Camera Series
POSTED 05/05/2015
The EyeCheck 7xxx series by EVT has a free programmable FPGA. The EyeCheck 7800 smart camera for example has not only a Dual Core processor and an FPGA of 85K but also a 4.2 MegaPixel CMOS sensor. In combination with the EyeVision 3.0 software it is possible to capture extremely small objects in highspeed. Thanks to the FPGA the image capture and image evaluation can be realized in real time.
Additionally the FPGA can be programmed with graphical tools. This is all in line with the EyeVision image processing software, which is also graphically programmable. The easy-to-handle drag-and-drop programming makes it easy to create inspection programs, even without programming skills.
The EyeCheck 7xxx series runs with Linux OS and has GigE, RS232 and RS485 interfaces as well as digital I/Os.
The smart cameras are especially useful for applications with little space available and can be integrated easily into existing plants. The camera are suitable for WEB inspection or also pattern matching, fast measurement technology and object counting.
