ChipControl – The One Command Set for the Visual Control of Electronic Components
To meet the demands of automated visual inspections in the electronics assembly process, EVT has developed the “ChipControl“ command set. This means that, in the well-proven EyeVision image processing software exists the option to add the ChipControl command set.
The applications for the command set are in various areas of the quality inspection in the electronic and automotive industry. The aim is mostly to increase the quality of the components by visual capture and evaluation of the product characteristics. Additionally, using EyeVision, also the process stability can be increased. This happens due to the inspection of the component type and the reading of the Data-Matrix-Code.
For the visual control with ChipControl, tasks as e.g. follows were defined: inspection if the electronic contacts are bent, the presence of the contact housing, inspection of the coplanarity, recognition of the pin-one marker, orientation and position adjustment, the pin gap, etc.
ROI Calculator
Discover the potential cost savings of robotic automation over a 20-year system life
This calculator compares your current manual labor costs against the total cost of owning and operating a robotic system over its 20-year lifespan.
In combination with the ChipEye 5-Side the electronic components can be captured from five sides and evaluated by the EyeVision software at the same time. NIO and IO parts can be therefore separated quite easily.
The 5-Side scanner is specialized on inspection of microscopically small components and covers a broad scope of applications.

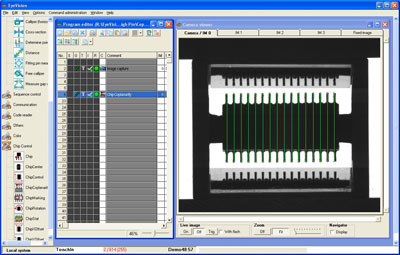

Also, ChipControl fits perfectly into the drag-and-drop programming of the EyeVision software. The prefabricated commands are displayed as icons and can be just dropped into the inspection program, without any programming skills.
Besides, the EyeVision software is modularly expandable, which means that all the commands can be added also in a later stage. Therefore the user can add commands without buying a new license.
