Pick & Place Application Supported by Calibrated Camera Systems

Smart Component Feeding Through Vision-Guided Robotics

The combination of senswork’s machine vision expertise, flexible feeding technology, and robotic automation creates an intelligent solution for demanding pick-and-place applications. In this project, a calibrated camera system was integrated with a flexfeeder and robotic handling system to enable the reliable feeding and positioning of individual components for a multitool cutting tool assembly process.

Application Challenge

The production process required the automated handling of various components supplied through a flexfeeder. To ensure reliable robotic picking, the system had to identify suitable pick candidates while accurately determining both their position and rotational orientation. A particular challenge was the detection of components that could appear in a flipped orientation, requiring precise image processing and stable lighting conditions.

Solution

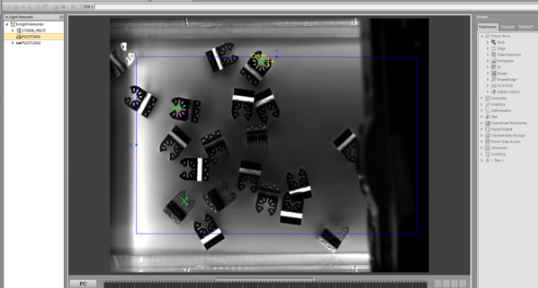

senswork implemented a calibrated camera system that continuously analyzes the components within the flexfeeder. Using dark-field illumination, the vision system reliably detects each part and determines its exact position and orientation. The calculated coordinates are transmitted directly to the robot, enabling precise and efficient pick-and-place operations.
