360° View of Screw Cap Lids in a Single Image

Challenge

In the food industry, product quality and packaging integrity are essential. After filling soup jars, even small surface defects such as scratches on screw cap closures can negatively impact brand perception and lead to customer complaints. Conventional inspection methods often fail to reliably capture the entire outer surface of a lid at production speed, particularly in inline applications.

The challenge was to ensure complete and consistent quality control of screw cap lids without slowing down the production process or increasing system complexity.

Application

The inspection system is used after the filling process to check the quality of screw cap closures on soup jars. The goal is to detect scratches and other surface defects on the outer surface of the lid while the jars move through the production line. The solution had to provide a full 360-degree view of the lid surface, operate inline, and maintain high throughput without compromising inspection accuracy.

Solution

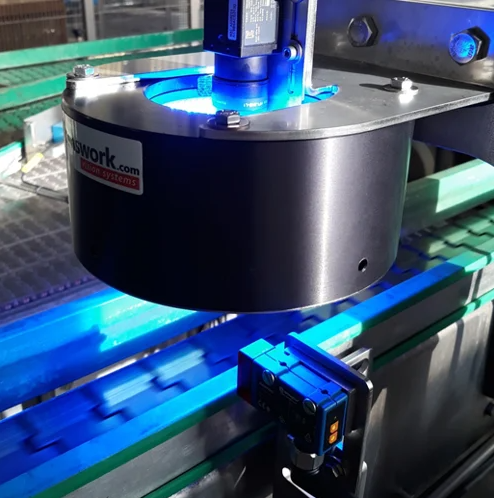

senswork developed a compact 360° camera inspection system that enables a complete view of the screw cap surface in a single image. By using mirror deflection technology, the system captures the entire outer surface of the lid without the need to rotate the jar. This approach allows reliable detection of scratches and surface defects while keeping the system layout simple and efficient. The inspection is fully integrated into the production line, ensuring continuous quality control directly after filling.

ROI Calculator

Discover the potential cost savings of robotic automation over a 20-year system life

This calculator compares your current manual labor costs against the total cost of owning and operating a robotic system over its 20-year lifespan.

EXPLORE TODAY

Result

The senswork camera inspection system enables high-speed, reliable inline inspection of screw cap closures at a rate of up to six jars per second. By capturing the entire lid surface in one image, the system ensures complete 360-degree inspection. By combining full surface inspection with high-speed inline operation, the system ensures consistent product quality while supporting high production throughput.

To learn more about custom vision technologies, read more at senswork.us.
