Testing of Cutting Contacts on a Connector Assembly

08/08/2022
1 minute

A3-Machine-Inspection-3D-Render-Software

Challenge

Manufacturers of cutting contacts face several quality assurance challenges, including detecting minute deviations in contact geometry, ensuring consistent clearances and gap dimensions, and identifying deformations that could affect performance. Traditional single-direction inspection systems often require multiple passes or repositioning, which increases inspection time and reduces efficiency.

Solution

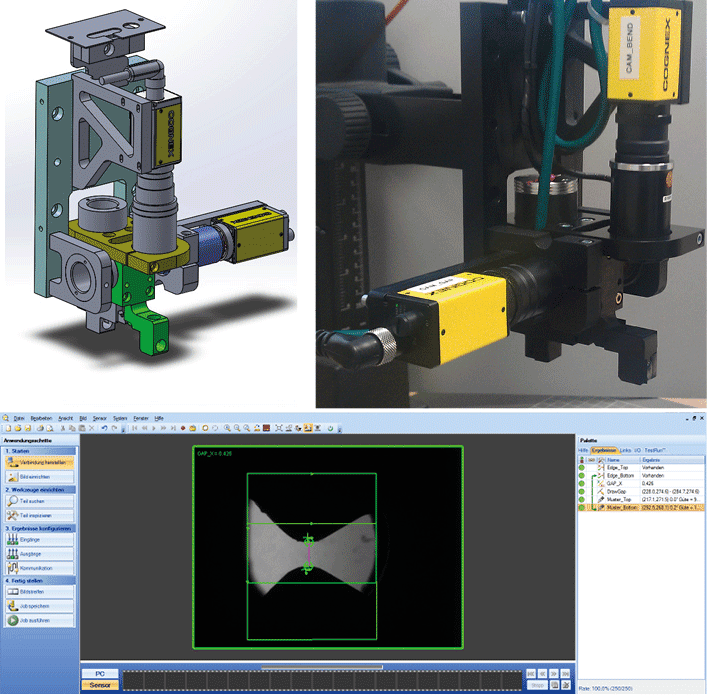

senswork implemented a VisionUnit-based double-head inspection system mounted on a 3D gantry system. Cleverly deflected beam paths allow inspection from two directions simultaneously, eliminating the need for repositioning. The 3D system precisely positions the VisionUnit over the contact elements, ensuring consistent measurements.

ROI Calculator

Discover the potential cost savings of robotic automation over a 20-year system life

This calculator compares your current manual labor costs against the total cost of owning and operating a robotic system over its 20-year lifespan.

EXPLORE TODAY



Results

The system performs multiple quality checks in a single pass, including detection of bends in contacts and measurement of gap dimensions. By combining advanced optics with intelligent system design, senswork’s double-head inspection system significantly improves inspection efficiency and accuracy. The manufacturer benefitted from precise and wear-free measurement.
