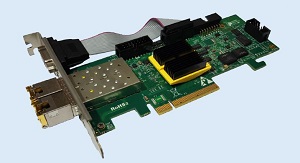

HawkEye-20GigEVision- Dual-Port 10 GigE Frame Grabbing & Image Processing System
The Gidel HawkEye-20GigE frame grabbing and real-time image processing system offers true 10 GigE acquisition capabilities guaranteeing 100% frame capture with no frame loss. The board is supported by comprehensive system I/Os, ROI capture capability, multi-link aggregation and chunk data (payload type: 0x4001) transmission.
The HawkEye-20GigE series offers a number of options to accommodate diverse application needs, from a plug-and-play high-performance frame grabber to a fully customized system solution comprising acquisition, FPGA image processing, real-time image compression, multi-camera synchronization and complex I/O system control.
The HawkEye-20GigE has an acquisition bandwidth of 20 Gb/s via two SFP+ ports enabling grabbing from two 10 GigE cameras, multi-link cameras or multiple GigE cameras via a switch. The HawkEye-10GigE family is based on PCIe Gen. 3 x8, providing CPU-free ultra-fast offload bandwidth.
The boards are supported by Gidel’s development tools, including the ProcVision Kit for tailoring, debugging and verifying the FPGA image processing and data flow, and the Proc Dev Kit for generating automatically the Application Support Packages (ASPs) and the environment FPGA code, including all board/IP constrains and user logic wrapper.
