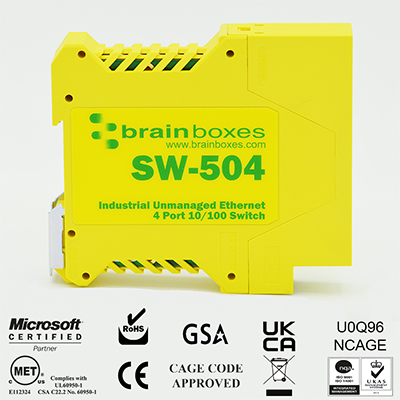

Industrial Ethernet 4 Port Switch DIN Rail Mountable (SW-504)

Industrial Ethernet 4 Port Switch DIN Rail Mountable

• 4 Port Ethernet Switch
• Integrated DIN Rail Mount with grounding
• Redundant dual power inputs: +5V to +30V DC
• Industrial operating temp range -40°C to +80°C / -40°F to +176°F
• Slim Footprint Case, only 22.5mm wide

PDF Datasheet Download

Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
