As a global market leader Teledyne Lumenera provides an extensive range of high quality digital cameras with unique combinations of speed, resolution and sensitivity to satisfy the demands of today's imaging applications. Teledyne Lumenera also offers custom design services to OEM partners requiring specialized hardware and software features. Our core competencies include digital bus technologies such as USB 3.0, USB 2.0, Ethernet, HDMI and Gigabit Ethernet (GigE) as well as a complete command of digital imaging hardware and software built around CMOS and CCD based imagers. Our diversity provides our customers with the benefits of superior price-to-performance ratios and faster time-to-market. Teledyne Lumenera’s commitment to high quality, cost-effective solutions is unparalleled. Teledyne Lumenera provides customized design services, continuous innovation and licensing options to our partners and OEM customers. Teledyne Lumenera custom cameras can be adapted to fit your application.
Product filed under:
Cameras & Smart Cameras and USB3 Vision Cameras & Smart Cameras and USB3 Vision
Large pixel width for a variety of imaging applications
With many imaging applications the overall megapixel value of a camera’s sensor is not the most important specification. With a 5472 x 3084 resolution, the Lt-C/M5470 camera is ideal for applications that benefit from a large pixel width. For example, a large pixel width allows unmanned aerial vehicles to capture a wider landscape with each image or an intelligent traffic system to image a greater number of lanes on a roadway. And, with a high dynamic range to go along with its wide field of view, the images from the Lt-C/M5470 clearly distinguish areas of interest.

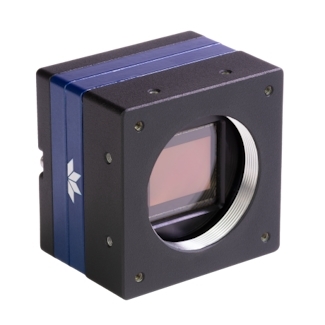

LT-C/M5470 CAMERA PRODUCT HIGHLIGHTS
- Color Sony® Pregius™ IMX387 global shutter CMOS sensor with 4/3” optical format
- 16.9 megapixel camera with fast frame rates of 32 fps at full resolution (5472 x 3084)
- High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity
- Rugged form factor measuring 44 x 59 x 59 mm
- Locking industrial micro USB for power and control
- Region of Interest (ROI) option to provide higher frame rates
- Selectable 8 or 12-bit pixel data
- Multiple data rates supported, each optimized for lowest noise performance
