Teledyne Lumenera Product
As a global market leader Teledyne Lumenera provides an extensive range of high quality digital cameras with unique combinations of speed, resolution and sensitivity to satisfy the demands of today's imaging applications. Teledyne Lumenera also offers custom design services to OEM partners requiring specialized hardware and software features. Our core competencies include digital bus technologies such as USB 3.0, USB 2.0, Ethernet, HDMI and Gigabit Ethernet (GigE) as well as a complete command of digital imaging hardware and software built around CMOS and CCD based imagers. Our diversity provides our customers with the benefits of superior price-to-performance ratios and faster time-to-market. Teledyne Lumenera’s commitment to high quality, cost-effective solutions is unparalleled. Teledyne Lumenera provides customized design services, continuous innovation and licensing options to our partners and OEM customers. Teledyne Lumenera custom cameras can be adapted to fit your application.
Product filed under:
Cameras & Smart Cameras and USB3 Vision Cameras & Smart Cameras and USB3 Vision
High Dynamic Range - Tough Imaging Applications
By developing a camera that takes the high dynamic range of the Sony® Pregius™ Gen 3 sensors and combines the rugged, compact design of the Lt Camera Series, challenging imaging applications such as precision agriculture, Intelligent Trafic Systems (ITS), and Life Sciences can truely benefit. Whether sunlight drops during the day or conditions are a harsh on the factory floor, the Lt-C/M1630 camera can reliably capture clear images in a variety of lighting and operating conditions.

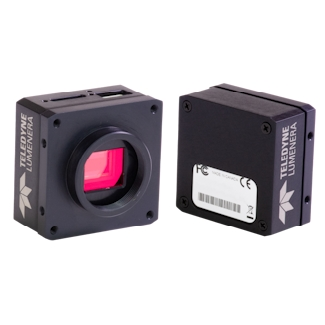

TELEDYNE LUMENERA LT-C/M1630 CAMERA PRODUCT HIGHLIGHTS
- Color or monochrome Sony® Pregius™ IMX430 global shutter CMOS sensor with 1/1.7” optical format
- 2.0 megapixel camera with fast frame rates of 86 fps at full resolution (1632 x 1248)
- High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity
- Compact form factor measuring 45 mm x 45 mm x 36.1 mm
- Locking industrial micro USB on the side for power and control
- High Conversion Gain (HCG) allows camera to capture clearer images in low-light environments with reduced read-noise
- Region of Interest (ROI) option to provide higher frame rates
- Selectable 8 or 12-bit pixel data
- Multiple data rates supported, each optimized for lowest noise performance
