Technosoft is a leading gloval manufacturer of motion control products, offering intelligent OEM drive solutions for universal control of AC servo, Stepper, and CD Motors. All products are fully programmable, enabling distributed control via RS232, RS485, CANopen, and EtherCAT networks. A full compliment of software tools, including EasyMotion Studio and host level libraries are offered to speed development of motion and machine control applications.
Product filed under:
Controls Controls

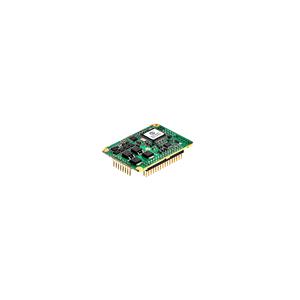

iPOS4808 MY Intelligent Drive (400 W, CANopen / EtherCAT)
- Standard header 2.54 mm & 1.27 mm pitch connectors
- Sinusoidal (FOC) or trapezoidal (Hall-based) control of brushless motors
- Open-loop or closed-loop control of 2-phase and 3-phase steppers
- Various modes of operation: torque, speed or position control; position or speed profiles; reference: external analog, or sent via a communication bus
- TML instruction set for the definition and execution of motion sequences
- Standalone operation with stored motion sequences
- RS-232 serial communication
- CAN-Bus 2.0B up to 1 Mbit/s, or CANopen
- EtherCAT communication via additional extension module (optional)
- Digital and analog I/Os:
- 6 digital inputs: 5-36 V, NPN (2 limit switches and 4 general-purpose ones)
- 5 digital outputs: 5-36 V, 0.5 A, NPN open-collector (Ready, Error, 3 general-purpose ones)
- 2 analog inputs: 12-bit, 0-5 V: Reference, Feedback or general-purpose
- Safety:
- 2 Safe Torque Off inputs (STO), Cat. 3 (EN954-1), SIL3 (IEC61508, IEC 62061), PLe (EN/ISO 13849-1)
- Feedback devices (dual-loop supported):
- 1st Feedback:
- Incremental quad encoder (single-ended, open collector and differential)
- Analog sine/cosine incremental encoder (differential: 1 Vpp)
- Digital and linear Hall sensors
- 2nd Feedback:
- Incremental quad encoder (differential)
- Pulse & direction interface (differential)
- BiSS / SSI encoder interface
- 1st Feedback:
- 127 h/w selectable addresses through pin configuration
- Easy configuration and programming with EasyMotion Studio software platform
- Protection to over-current, short-circuit, earth fault, over- / under-voltage, I2t, control error
