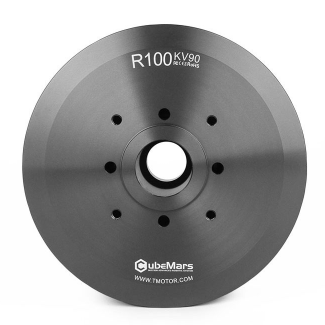

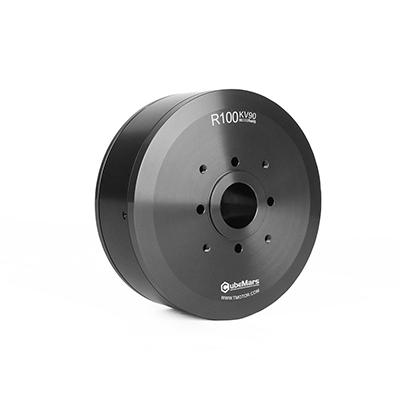

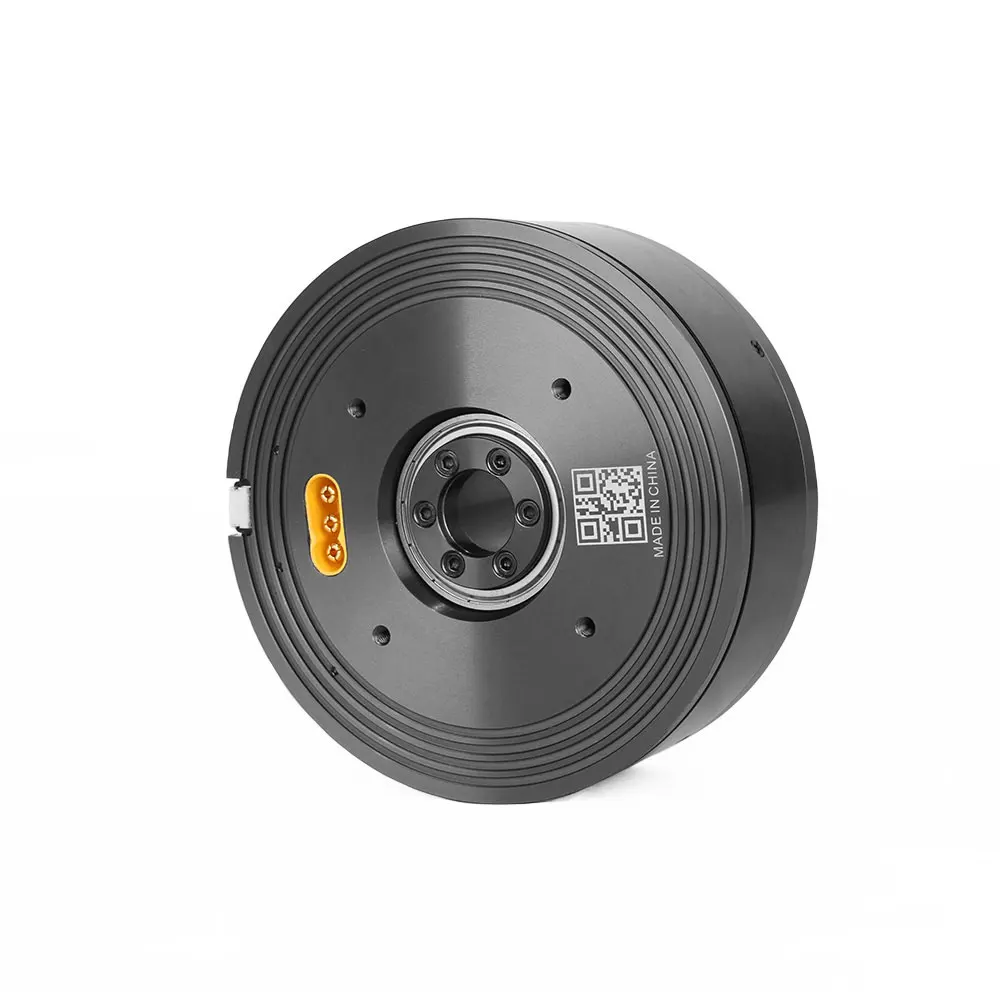

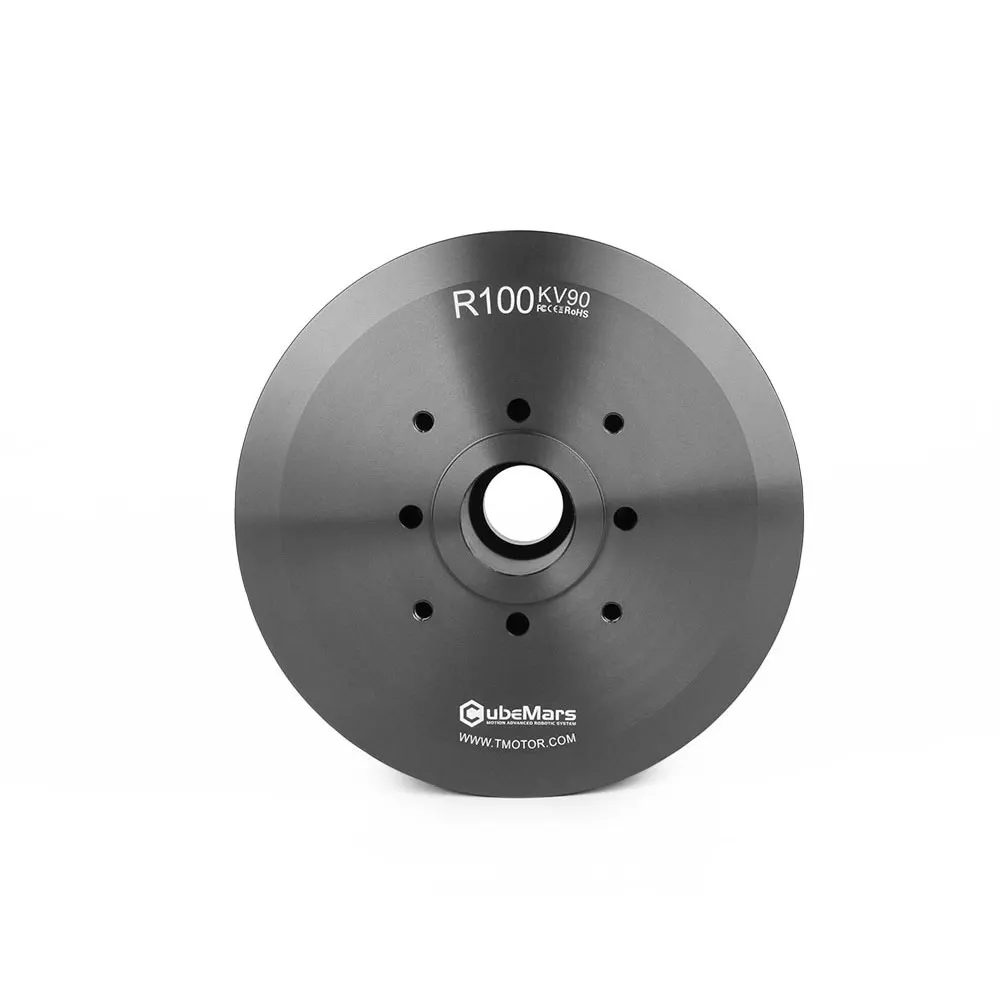

Cubemars high precision outrunning torque brushless motor
Model: R100 KV90
Max torque 10Nm R100 KV90 1kw 2kw 3kw 4kw disk flat robot bldc sensor motor for quadruped robot.
Product Description
Note: We are factory supplier. All our motors can be customized in torque voltage rpm output size etc. Pls feel free to contact us for more details and requirements.
Max torque 10Nm R100 KV90 1kw 2kw 3kw 4kw disk flat robot bldc sensor motor for quadruped robot.
|

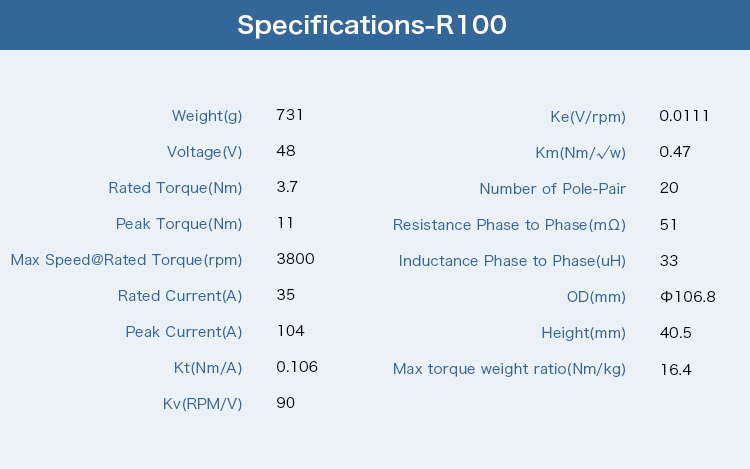

Model No. |
R60 |
R80 |
R100 |
|
Kv(rpm/V) |
115 |
110 |
90 |
|
Size(mm) |
69*26 |
87*27.5 |
106.8*40.5 |
|
Weight(g) |
248 |
310 |
820 |
|
Voltage (V) |
48 |
48 |
48 |
|
Rated Torque (N.m) |
0.75 |
1.6 |
4 |
|
Peak Torque (N.m) |
2.3 |
4 |
12 |
|
Rated Current (A) |
9 |
15 |
33 |
|
Max Current (A) |
28 |
38 |
98 |
|
Speed(RPM) |
4150 |
4050 |
3600 |
|
Pole-Pair |
14 |
21 |
20 |
|
Km (Nm/sqr w) |
0.171 |
0.284 |
0.523 |
|
Application |
Exoskeleton, walking robot, automation equipment, scientific research and education project Robot arm, robot joint, robot dog, service robot and other high precision equipments. |
||

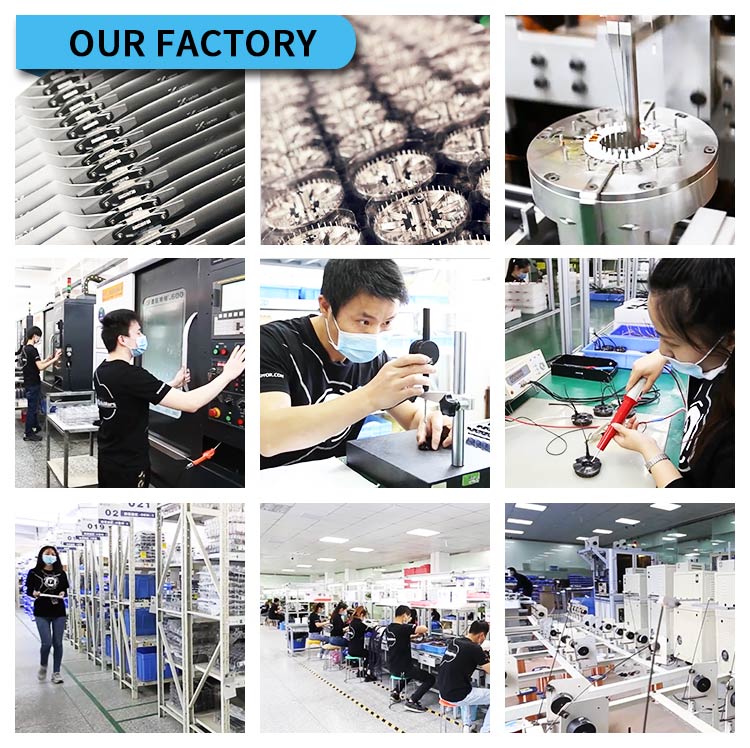

Our Company
Packing & Delivery
FAQ
Q1: Are you factory supplier?
A: Yes,we are factory with more than 25 years experience. We can do both OEM and ODM. We have our own R&D team.
Q2: What is your MOQ?
A: MOQ is 1 pcs.
Q3: Can I get a free sample?
A: Generally we don't provide free sample, but we can return sample cost when you place format orders.
Q4: How long is the delivery time?
A: In general, the delivery time is 3 to 7 working days.
Q5: What is your guarantee term?
A: The warranty period for our products is one year along with technical support and free return.
Q6: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite installation or debugging. Welcome to visit our factory to learn and check the robot motor.
Q7: What are the payment methods?
A: We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card.
Pls feel free to send inquiry for more details, we are on-line 24 hours for you!!!
