Nanchang Kude Intelligent Technology Co., Ltd. Product
Member Since 2018
CubeMars provides reliable robotic motors for humanoids & automation
Product filed under:
DC Brushless Motors and Motor Controls DC Brushless Motors and Motor Controls
CubeMars G40 KV70 Industrial Robot Gimbal Motor With Encoder Motor Brushless
Model: G40
Products Show
Note: We are factory supplier.
All our motors can be customized in torque, voltage, speed, power, size etc.
Pls feel free to send inquiry if you need custom your owm motor.
CubeMars G40 KV70 gimbal brushless motor gimbal micro robot motor
MORE ABOUT THIS MOTOR.
Our Gimbal Motors are with diferent size, torque, voltage, which can meet different customers' requirements. Possible uses for Gimbal system, autonomous vehicles, Lidar and other applications with high precision and low speed. It is your choice which motor will work best for you.
1. Power Series: G30/G35/G40/G60/G80/G100/GL30/GL35/GL40/GL60/GL80/GL100
Features:
1. Be Simple
2. Be Mature and Generous
3. Be Natural product
4. The Art of Achieving Perfection in Performance
5. Solid Black Metalic surface.
Recommended by seller
|

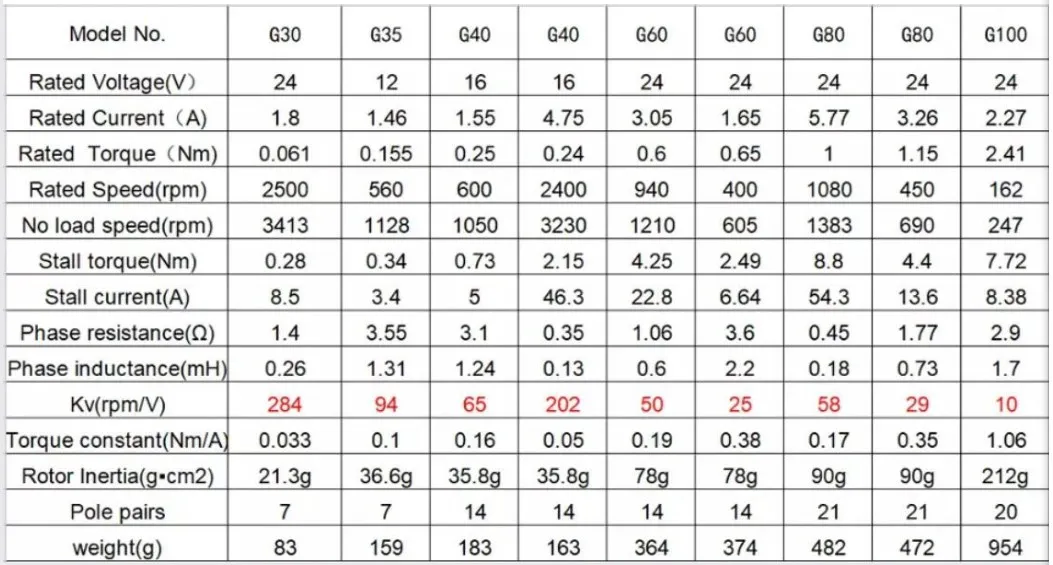

Motor NO. |
GL30 |
GL35 |
GL40 |
GL60 |
GL80 |
GL100 |
|
Weight(g) |
41 |
90 |
107 |
230 |
315 |
698 |
|
Voltage(V) |
12 |
16 |
16 |
24 |
24 |
24 |
|
RatedTorque(N.m) |
0.08 |
0.15 |
0.25/0.33 |
0.6 |
0.6/1 |
3 |
|
Peak Torque(N.m) |
0.28 |
0.46 |
0.73/0.98 |
1.75 |
1.75/2.9 |
7.7 |
|
Rated Current(A) |
2.3 |
1.45 |
1.65/7 |
1.43/3.1 |
1.43/5.8 |
2.8 |
|
Peak Current(A) |
8.5 |
4.5 |
5/22 |
4.2/9.5 |
4.2/17 |
8.4 |
|
Kt(N.m/A) |
0.033 |
0.1 |
0.14/0.046 |
0.4/0.188 |
0.35/0.17 |
1 |
|
IP |
IP45 |
IP45 |
IP45 |
IP45 |
IP45 |
IP45 |
|
Kv(Rpm/v) |
290 |
100 |
70/210 |
25/55 |
30/60 |
10 |
|
Hollow Shaft(mm) |
6 |
6 |
8 |
21 |
30 |
30 |
|
OD(mm) |
34.5 |
41.8 |
46.5 |
69 |
69 |
106.8 |
|
Height(mm) |
15.7 |
21 |
21.5 |
22.3 |
22.3 |
34.2 |
|
Rated Speed(rpm) |
2200 |
900 |
600/2200 |
350/850 |
350/1050 |
140 |
