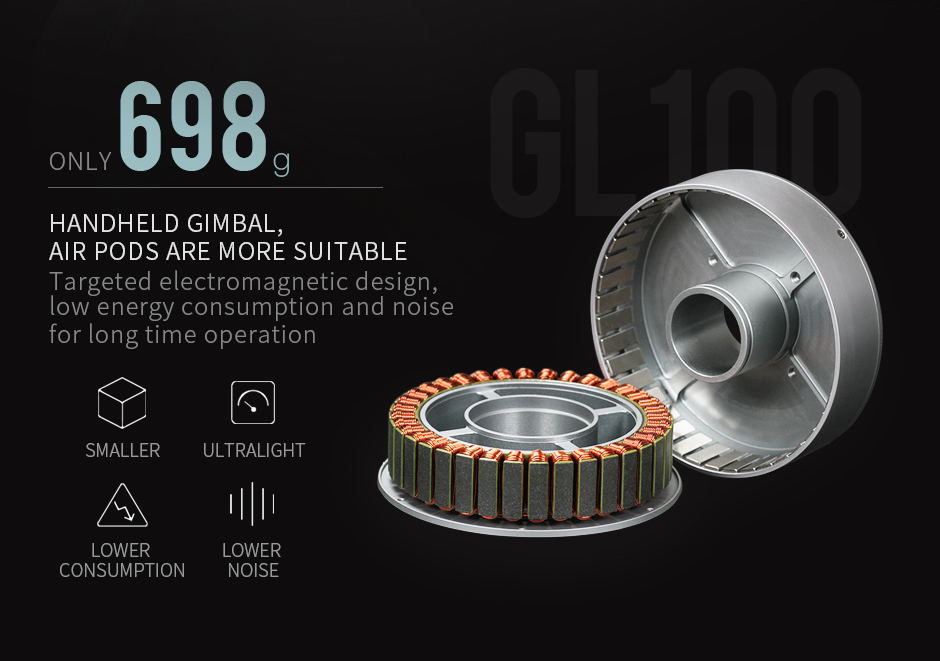

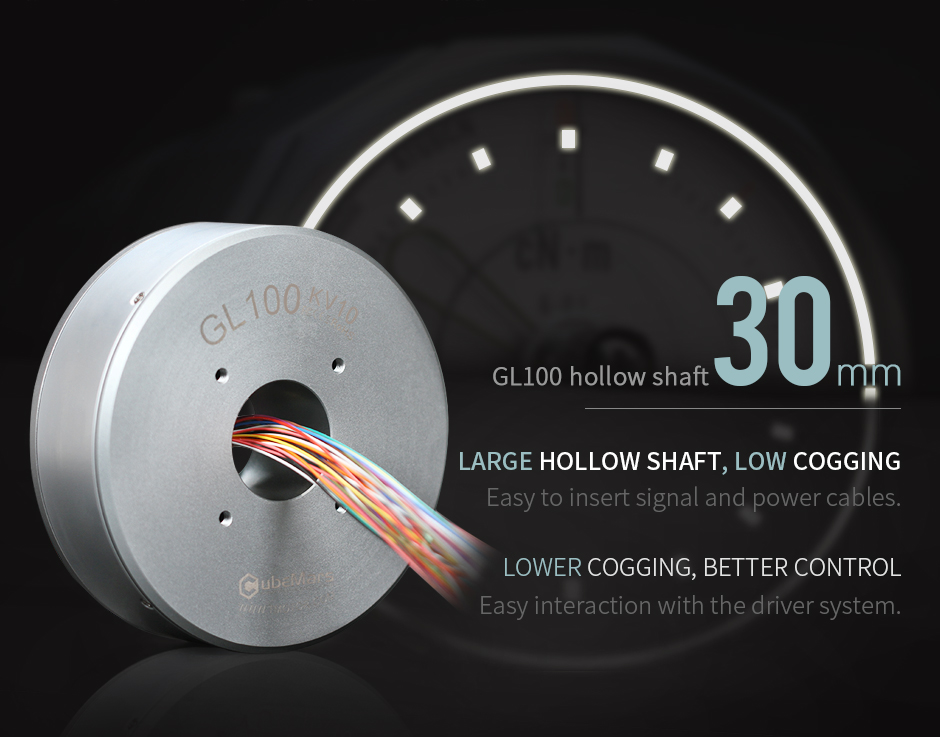

CubeMars GL100 KV10 brushless motor with large hollow shaft for gimbal camera
Model: GL100
Products Show
Note: We are factory supplier.
All our motors can be customized in torque, voltage, speed, power, size etc.
Pls feel free to send inquiry if you need custom your owm motor.
GL100 LOW torque high performance brushless hollow dc gimbal motor torque.

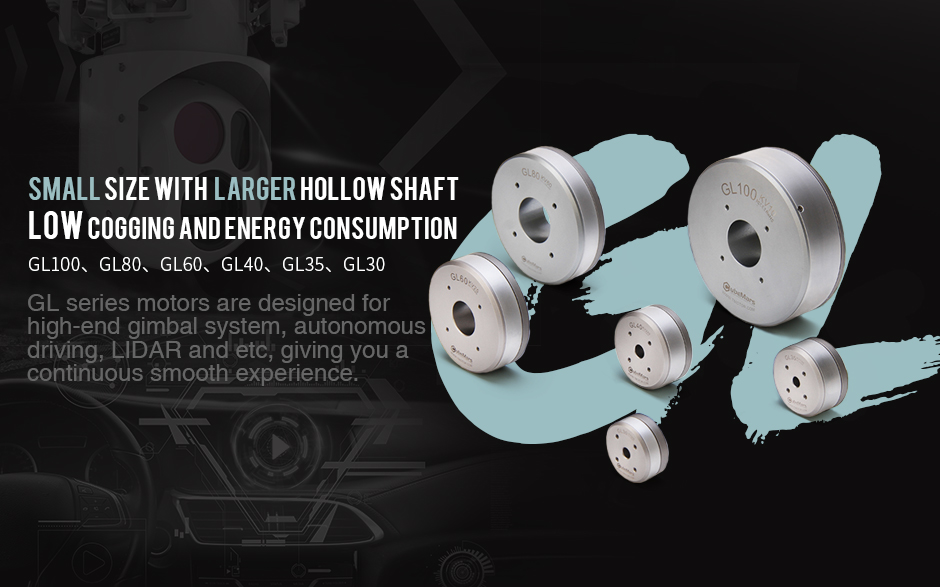

More Models for your option
|
Motor NO. |
GL30 |
GL35 |
GL40 |
GL60 |
GL80 |
GL100 |
|
Weight(g) |
41 |
90 |
107 |
230 |
315 |
698 |
|
Voltage(V) |
12 |
16 |
16 |
24 |
24 |
24 |
|
RatedTorque(N.m) |
0.08 |
0.15 |
0.25/0.33 |
0.6 |
0.6/1 |
3 |
|
Peak Torque(N.m) |
0.28 |
0.46 |
0.73/0.98 |
1.75 |
1.75/2.9 |
7.7 |
|
Rated Current(A) |
2.3 |
1.45 |
1.65/7 |
1.43/3.1 |
1.43/5.8 |
2.8 |
|
Peak Current(A) |
8.5 |
4.5 |
5/22 |
4.2/9.5 |
4.2/17 |
8.4 |
|
Kt(N.m/A) |
0.033 |
0.1 |
0.14/0.046 |
0.4/0.188 |
0.35/0.17 |
1 |
|
IP |
IP45 |
IP45 |
IP45 |
IP45 |
IP45 |
IP45 |
|
Kv(Rpm/v) |
290 |
100 |
70/210 |
25/55 |
30/60 |
10 |
|
Hollow Shaft(mm) |
6 |
6 |
8 |
21 |
30 |
30 |
|
OD(mm) |
34.5 |
41.8 |
46.5 |
69 |
69 |
106.8 |
|
Height(mm) |
15.7 |
21 |
21.5 |
22.3 |
22.3 |
34.2 |
|
Rated Speed(rpm) |
2200 |
900 |
600/2200 |
350/850 |
350/1050 |
140 |
FAQ
Q1: Are you factory supplier?
A: Yes, we are factory supplier with more than 25 years experience. We can do both OEM and ODM. We have our own R&D team.
Q2: What is your MOQ?
A: MOQ is 1 pcs both stocky and custom products.
Q3: Can I get a free sample?
A: Generally we don't provide free sample, but we can return sample cost when you place mass orders.
Q4: How long is the delivery time?
A: In general, the delivery time is 3 to 7 working days after received depoist.
Q5: What is your guarantee term?
A: The warranty period for our products is one year along with technical support and free return.
Q6: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite installation or debugging. Welcome to visit our factory to learn and check the robot motor.
Q7: What are the payment methods?
A: We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card, L/C.
