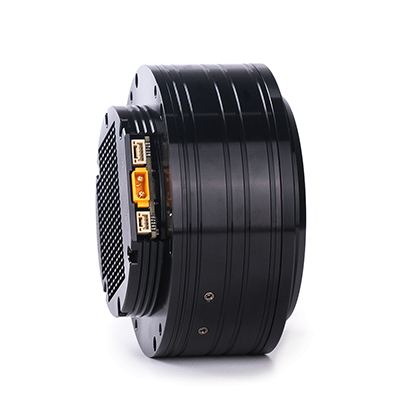

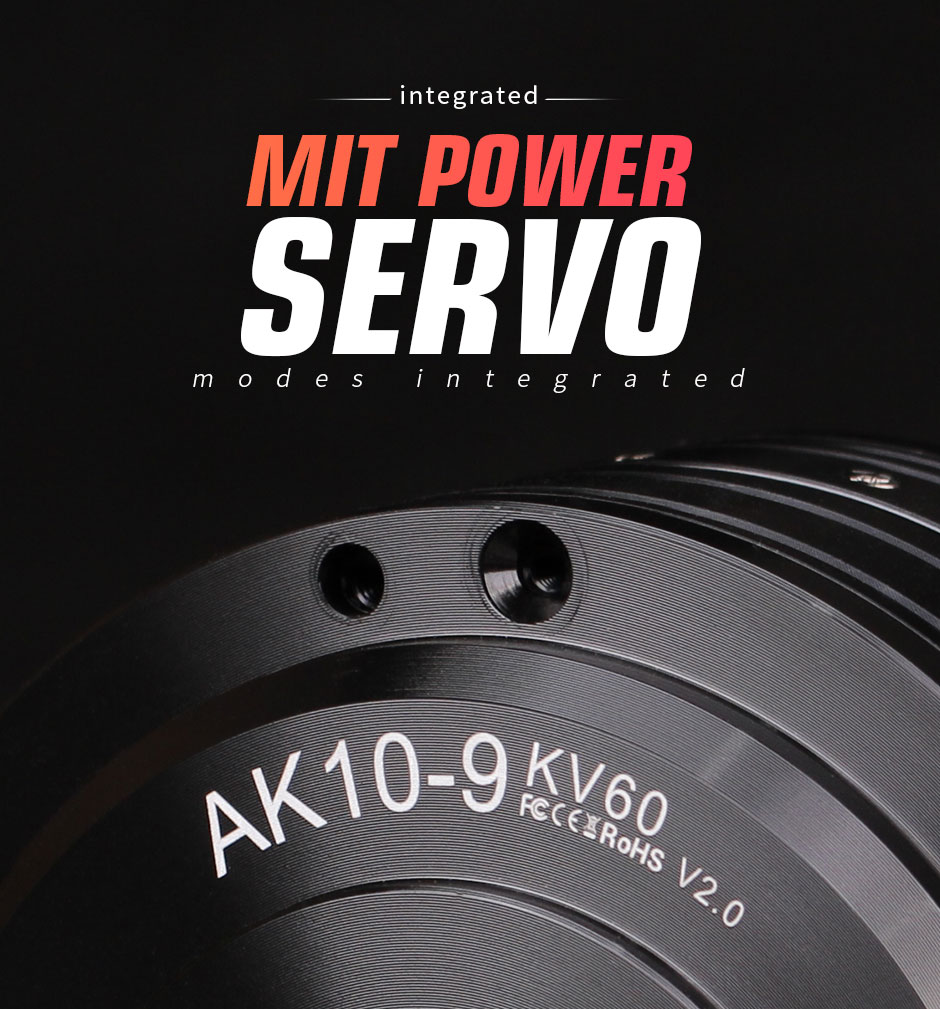

CubeMars AK10-9 V2.0 Motor high torque actuator with gearbox for low speed servo and MIT power
Model: AK10-9 V2.0
Products show
Note:
We are factory supplier.
All our motors can be customized in torque, voltage, speed, power, size etc.
Pls feel free to send inquiry if you need custom your owm motor.
T-motor Ak10-9 high torque 24v 48v 10nm 50nm torque test brushless disc actuator for low speed module equipment.
More models for AK series
|
Model No. |
AK80-6 |
AK80-9 |
AK70-10 |
AK10-9 |
AK80-8 |
AK60-6 |
|
Size (MM) |
98*48 |
98*45.2 |
89*50.2 |
98*65.2 |
98*43.9 |
76*36.5 |
|
Weight (g) |
465 |
485 |
521 |
820 |
570 |
315 |
|
KV(RPM/V) |
100 |
100 |
100 |
100 |
100 |
140 |
|
Voltage (V) |
24 |
24 |
48 |
48 |
48 |
24 |
|
Rated Torque(NM) |
6 |
9 |
8.3 |
18 |
10 |
3 |
|
Peak Torque(NM) |
12 |
18 |
24.8 |
54 |
25 |
9 |
|
Rated Current(A) |
12 |
12 |
8.8 |
22 |
6.9 |
7.4 |
|
Peak Current(A) |
24 |
24 |
26.1 |
68 |
21 |
22 |
|
Speed(RPM) |
365 |
245 |
400 |
445 |
243 |
233 |
|
Km (Nm/sqr w) |
0.25 |
0.25 |
0.24 |
0.45 |
0.30 |
0.17 |
|
Kt(Nm/A) |
0.105 |
0.00952 |
0.0123 |
0.0198 |
0.01 |
0.135 |
| Max Torque Weight Ratio
(nm/kg) |
24 |
37 |
47.6 |
50 |
35 |
24.46 |
|
Application |
Biped Quadruped Collaborative Service Training Robot, Robot Arm Joint, Medical Equipment, Mit Cheetah Robot Dog Robot and high precision low speed drive Module equipments. |
|||||
