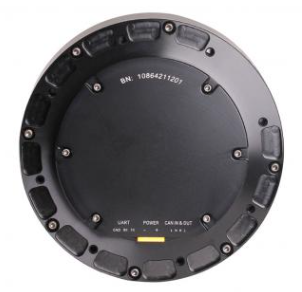

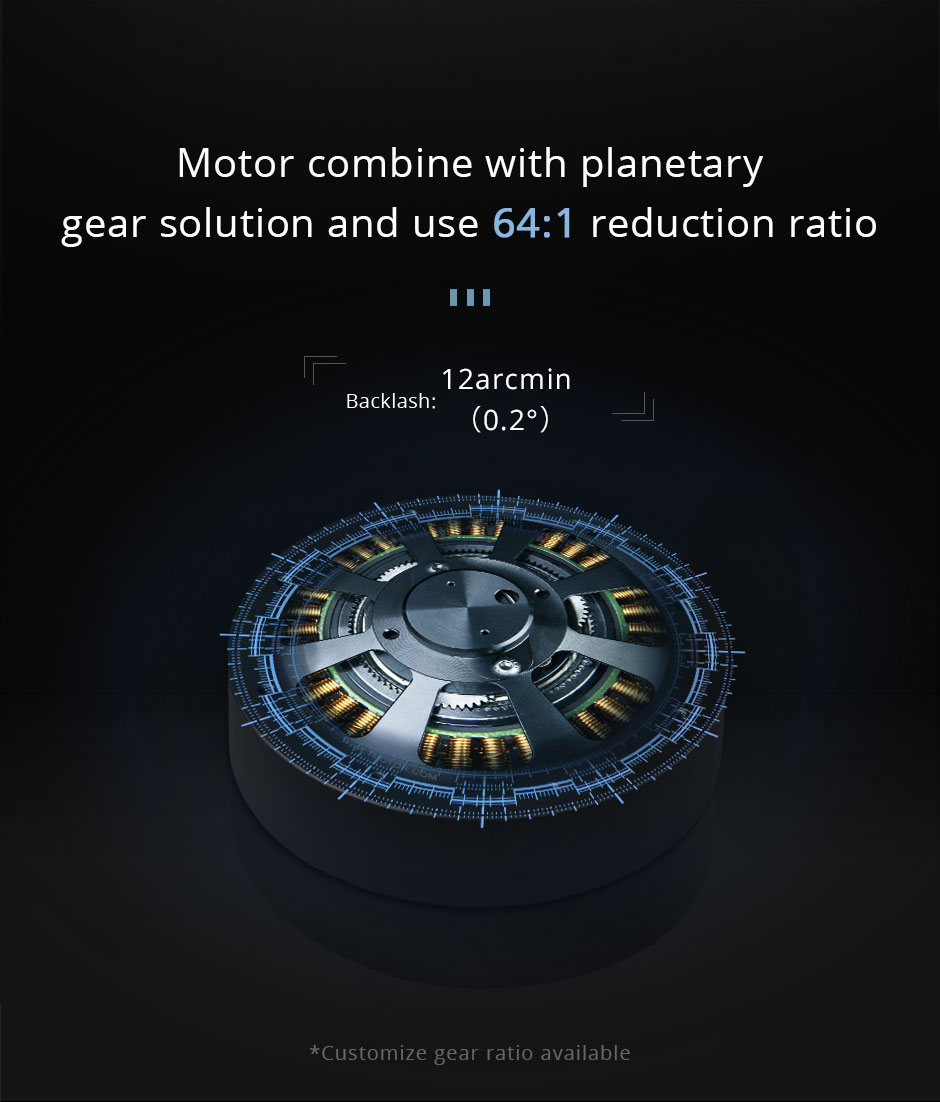

CubeMars AK80-64 actuator Motor with Gear inside Brushless DC Motor
Model: AK80-64
Product Description
All our motors can be customized in voltage torque output size color etc.
Pls feel free to contact us for more details!!! We will provide our best factory price.

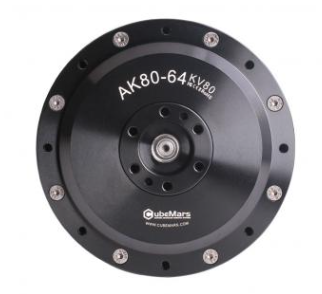

Products Show
.png)
.png)
More models for AK series
|
Model No. |
AK80-6 |
AK80-9 |
AK70-10 |
AK10-9 |
AK80-8 |
AK60-6 |
|
Size (MM) |
98*48 |
98*45.2 |
89*50.2 |
98*65.2 |
98*43.9 |
76*36.5 |
|
Weight (g) |
465 |
485 |
521 |
820 |
570 |
315 |
|
KV(RPM/V) |
100 |
100 |
100 |
100 |
100 |
140 |
|
Voltage (V) |
24 |
24 |
48 |
48 |
48 |
24 |
|
Rated Torque(NM) |
6 |
9 |
8.3 |
18 |
10 |
3 |
|
Peak Torque(NM) |
12 |
18 |
24.8 |
54 |
25 |
9 |
|
Rated Current(A) |
12 |
12 |
8.8 |
22 |
6.9 |
7.4 |
|
Peak Current(A) |
24 |
24 |
26.1 |
68 |
21 |
22 |
|
Speed(RPM) |
365 |
245 |
400 |
445 |
243 |
233 |
|
Km (Nm/sqr w) |
0.25 |
0.25 |
0.24 |
0.45 |
0.30 |
0.17 |
|
Kt(Nm/A) |
0.105 |
0.00952 |
0.0123 |
0.0198 |
0.01 |
0.135 |
| Max Torque Weight Ratio
(nm/kg) |
24 |
37 |
47.6 |
50 |
35 |
24.46 |
|
Application |
Biped Quadruped Collaborative Service Training Robot, Robot Arm Joint, Medical Equipment, Mit Cheetah Robot Dog Robot and high precision low speed drive Module equipments. |
|||||
