Staubli is a leading manufacturer of robotic tool changers, multi-connection systems, and quick release couplings. Our North American division provides customer support through its locations in Novi, MI; Duncan, SC; Queretaro, Mexico; and Windsor, CA.
Product filed under:
End of Arm Tooling and Tool Changers End of Arm Tooling and Tool Changers

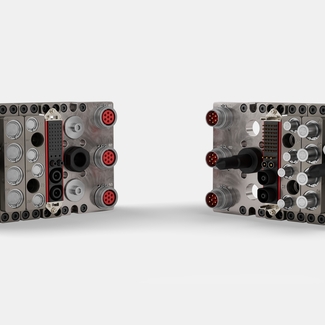

MPS 015 Complete
Model: Stäubli Robotic Tool Changer - Smaller Payload
For payloads up to 10kg. Robotic tool changing systems from the MPS product line are impressive due to their multifunctional technology applications and cover the entire bandwidth of customer-specific application
Robotic tool changing systems from the MPS product line are impressive due to their multifunctional technology applications and cover the entire bandwidth of customer-specific applications. The MPS 015 product is an extremely flexible solution for small payloads.
The ready-to-use robotic tool changer MPS COMPLETE covers the majority of standardized tool applications. Its transmission control module complies with the most common international production processes for robotic tool changing systems. Simply select a completely configured solution from our comprehensive product line.
This automatic, very compact tool changer offers numerous module variations for various components within media, data and energy transmission, such as pneumatics, vacuum and cooling, signal and power supply and primary current.
YOUR BENEFITS
- Orders from this product line can be delivered within the shortest possible timeframe.
- Additions to the transmission control modules can be made at any time.
- The robot cable package easily connects to standardized international interfaces, eliminating confusion.
|
|
MPS 015 |
|
|---|---|---|
|
Max. payload |
10 kg |
|
|
Max. static moment |
15 Nm |
|
|
Max. dynamic moment |
52 Nm |
|
|
Pneumatic ball locking |
0.45 - 1.0 MPa |
|
|
Repeatability |
+/- 1.5 μm |
|
|
Height (coupled) |
46 mm |
|
|
Pitch circle diameter (PCD) robot adapter flange |
ISO 9409-1-31, 5-4-M5 |
|
|
Module places |
4 |
