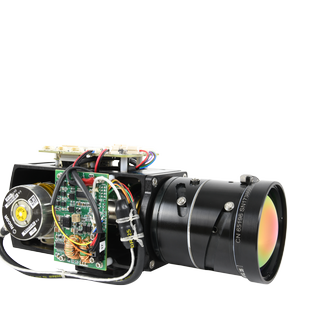

The Ventus 275 and 700 are powerful mid-wave infrared cameras that deliver exceptional infrared imaging.
See further while not compromising footprint or weight. A 15µm-pitch InSb focal plane array provides a 640×512 image that leverages the superior optical quality of the highly tuned athermalized and parfocal zoom lenses ranging from 28.4-0.8° HFOV. A powerful processing engine provides electronic image stabilization, digital zoom, automatic/manual gain control, adaptive contrast control (CLAHE/LAP), target tracking and detection, stock and user-defined LUTs, and 32GB of onboard video/still storage. The control and video interface offers digital (CameraLink) and analog video as well as an H.264-encoded IP stream. Command over serial and/or Ethernet using connection interfaces standardized across the wide Ventus™ and Vinden LR™ product lines.
Two lens options (19-275mm, 48-700mm) provide a uniquely cost-effective solution for applications such as security and surveillance, fixed monitoring, defense, manned/unmanned ground and airborne platforms, and many more. Sierra-Olympia Technologies’ expert support in documentation and staff make the integration of Ventus products a nearly drop-in experience. The Ventus cameras are also easily exportable under US Commerce regulations.
Detector
| Detector Type | IDC InSb |
|---|---|
| Array Format | 640 x 512 |
| Pixel Pitch | 15 micron |
| Spectral Response | MWIR |
| Frame Rate | 30 Hz |
| Bit Depth | 14-bit |
| NETD | <65 mK |
System
| Analog Video Output | NTSC/PAL |
|---|---|
| Digital Video Output | Uncorrected 14-bit CameraLink® |
| IP Video Output | MJPEG or H.264 Encoded |
| NUC | 2 NUC Tables 1-point thru lens |
| Image Enhacement | Linear Histogram AGC, CLAHE, LAP, Sharpen, De-noise, Electronic image, stabilization |
| Color Palette Options | User color palettes/LUT |
| Digital Zoom / Pan | 4x |
| Onboard Storage | Up to 32GB microSD |
| Camera control/Command Interfaces/System Control | Ethernet Serial (RS-422/RS-232) |
| Input Voltage | 12VDC |
Environmental
| 275 mm | 700 mm | |
|---|---|---|
| Power Dissipation | 10.5W typical 15W peak | 10.5W typical 15W peak |
| Operating Temperature | -20°C to +60°C | -20°C to +60°C |
| Mounting | 1/4-20 Tripod Mount and M4 Tapped holes | 1/4-20 Tripod Mount and M4 Tapped holes |
Lens Options
| Lens | FOV | F# | Focus | Optical Zoom | Size (L x W x H) | Weight |
|---|---|---|---|---|---|---|
| 275 mm | 28.4° to 2.0° | 5.5 | One-touch autofocus, manual | 14x | 198 x 102 x 95 mm | 1,150g |
| 700 mm | 11.4° to 0.8° | 5.5 | One-touch autofocus, manual | 15x | 309 x 160 x 160 mm | 2,780g |
