The DOBOT M1 Pro is a compact SCARA robot designed for light industrial automation. With high precision, easy deployment

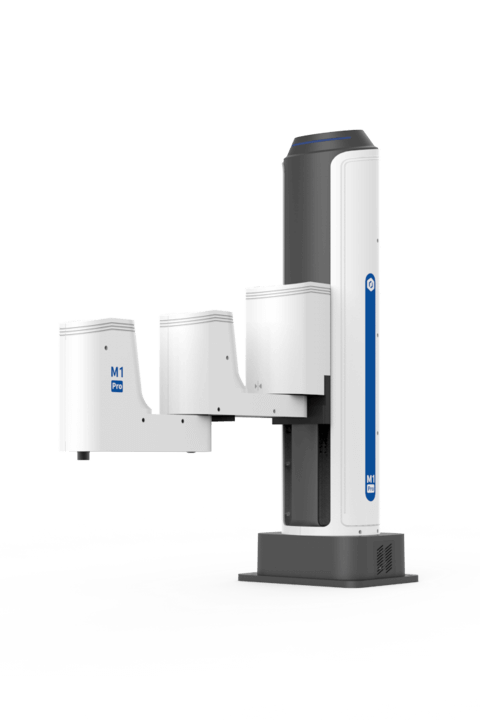

M1 Pro SCARA
The M1 Pro builds inherits and advances the capabilities of the M1, and integrates Dobot’s cutting edge software and hardware platforms, making it ideal for the manufacturing needs of the light industry as it can perform even more complicated tasks.
Quick to Deploy
The M1 Pro has an all-in-one compact design that integrates the control box and removes the need for additional wiring. With plug-and-play capability and high portability, the M1 Pro saves on setup time.
Safe to Collaborate
Equipped with collision detection feature for human machine collaboration. Its forearm is 40% narrower than a traditional industrial robotic arm which significantly reduces accidental bumping into and damaging the robot.
Easy to Operate
Calibration is greatly simplified with scripting and graphical programming, wired and wireless connections to PCs, tablets, smartphones and other terminal devices.
Optimized Performance
Added encoder interface supports dynamic grabbing and tracking functionalities, multithread and on the fly IO controls to reduce motion cycle time.

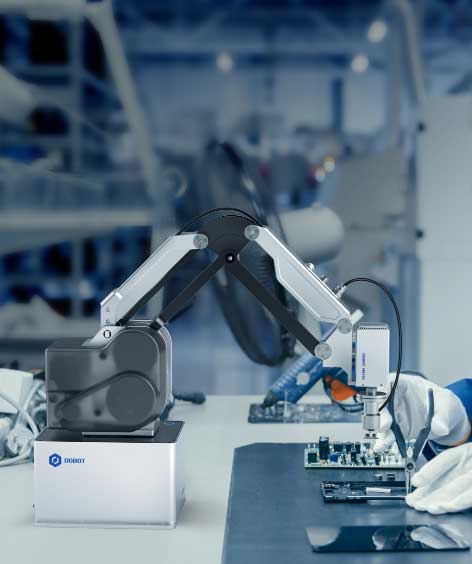

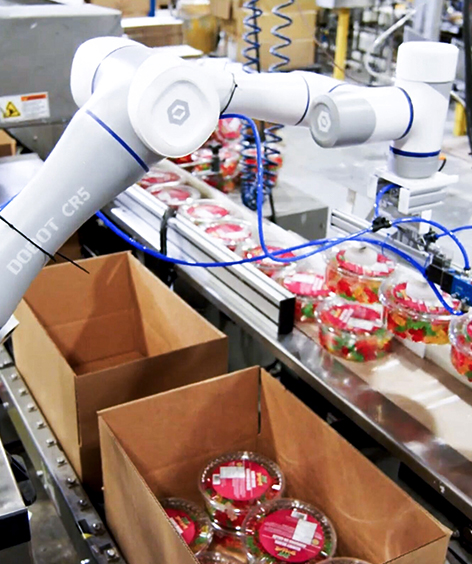

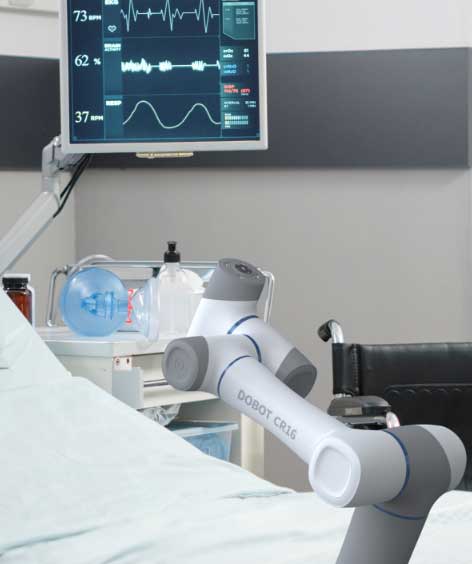

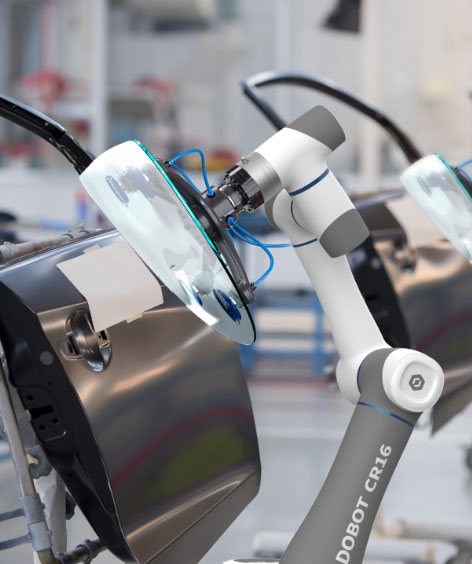

Application Scenarios
.jpg)
.jpg)
.jpg)
.jpg)
Adoption Across Industries
See how Dobot robots create competitive advantages for businesses.
M1 Pro |
.png) |
|
| Weight | 15.7 kg | |
| Maximum Payload | 1.5 kg | |
| Working Radius | 400 mm | |
| Repeatability | ±0.02 mm | |
| Rated Voltage | 100 ~ 240V AC, 50/60 Hz | |
