Dobot is one of the leading global providers of collaborative robots, ranking #1 cobot exporter in China. Dobot possesses a sound global network in the United States, Japan, Germany, and other countries.
Product filed under:
Collaborative Collaborative
The DOBOT CR5AS is an advanced 5kg collaborative robot with SafeSkin technology for pre-collision detection. It delivers enhanced safety and

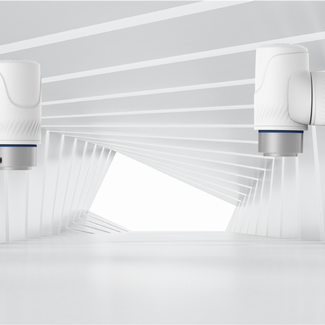

CR5AS Collaborative Robot
The CR5AS has a repeatability of ±0.02 mm and 5 levels of adjustable collision detection settings. The intelligent interaction panel offers quick access to drag-to-teach functionality. Equipped with SafeSkin for pre-collision detection, CR5AS allows for efficient human-machine collaboration.

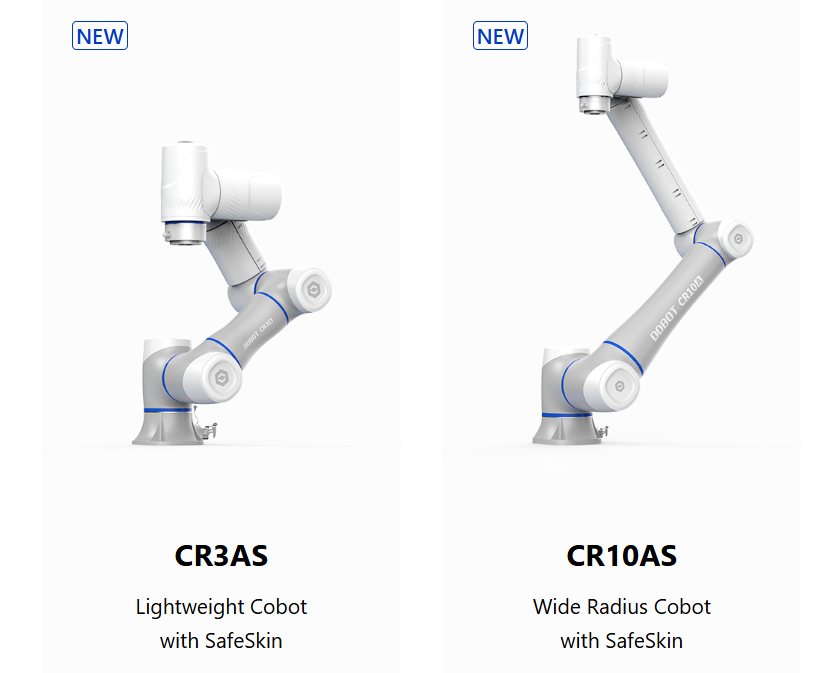

new CR3AS - Lightweight Cobot
with SafeSkin
new CR10AS - Wide Radius Cobot
with SafeSkin

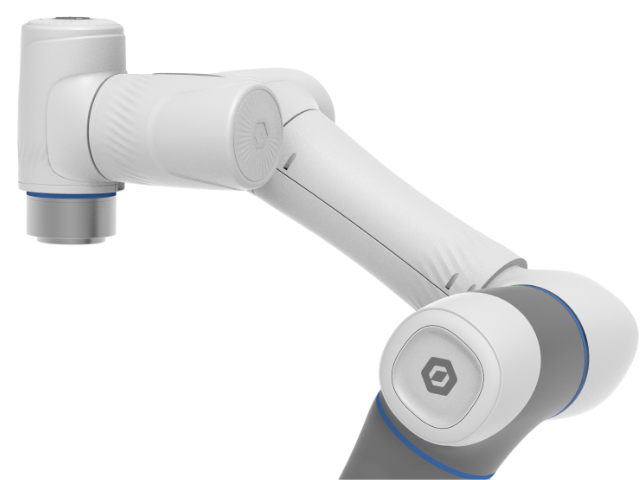

SafeSkin
Innovative Pre-collision
Sensing Technology
Dobot's Innovative technology for safer operations.
Learn more.png)
Application Scenarios
Related Cases
.png)

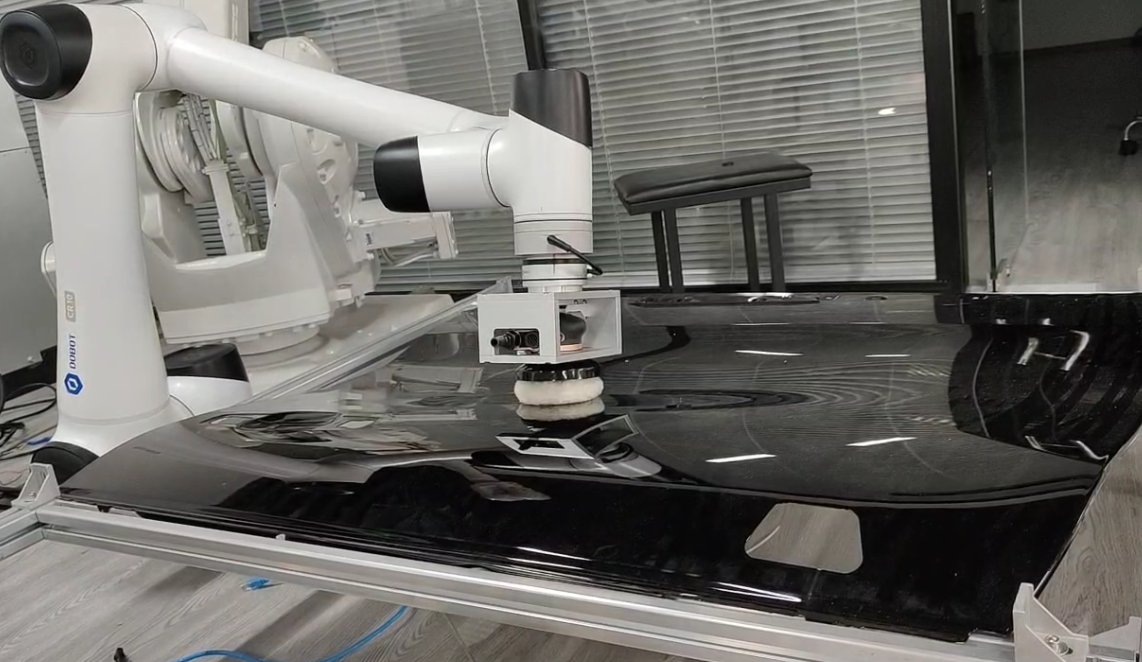

Sanding and Polishing of Car Roof Surface with CR5 Cobot
.png)

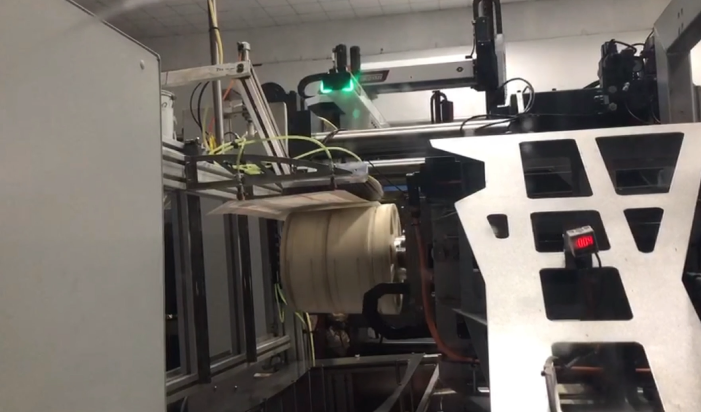

Injection Molding Machine Auxiliary with CR5 Robot Arm
.png)
AGV Loading and Unloading of CNC Machines with CR Series Collaborative Robot
| SafeSkin | ||
| Sense Type | Proximity and contact | |
| Sensing Targets | Human bodies, metals, liquids, etc. (Less effective with non-conductive items) | |
| Installation Location | J4, J5, J6 recommended | |
| Effective Sense Range | 5 ~ 15 cm (varies based on installation location) | |
| Sensing Cycle Time | 0.01 s | |
| Emergency Stop Execution Time | 0.1 s | |
