The DOBOT CR10AS is an advanced long-reach collaborative robot with SafeSkin technology for pre-collision detection. It delivers enhanced safety and
CR10AS Collaborative Robot
The CR10AS has a maximum reach of 1525 mm and max operating speed of 4 m/s. With DH parameters compensation technology and vibration supression algorithm, it is highly reliable when operating at high speed. Equipped with SafeSkin for pre-collision detection, CR10AS allows for efficient human-machine collaboration.

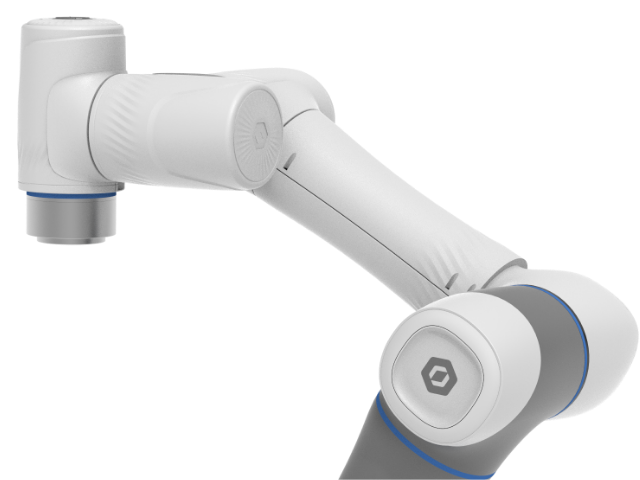

SafeSkin
Innovative Pre-collision
Sensing Technology
Dobot's Innovative technology for safer operations.
.png)
Application Scenarios
Loading and Unloading
- Assembly
- Bin Picking
- Gluing
- Quality Inspection
- Screwdriving
- Transporting
Related Cases
.png)

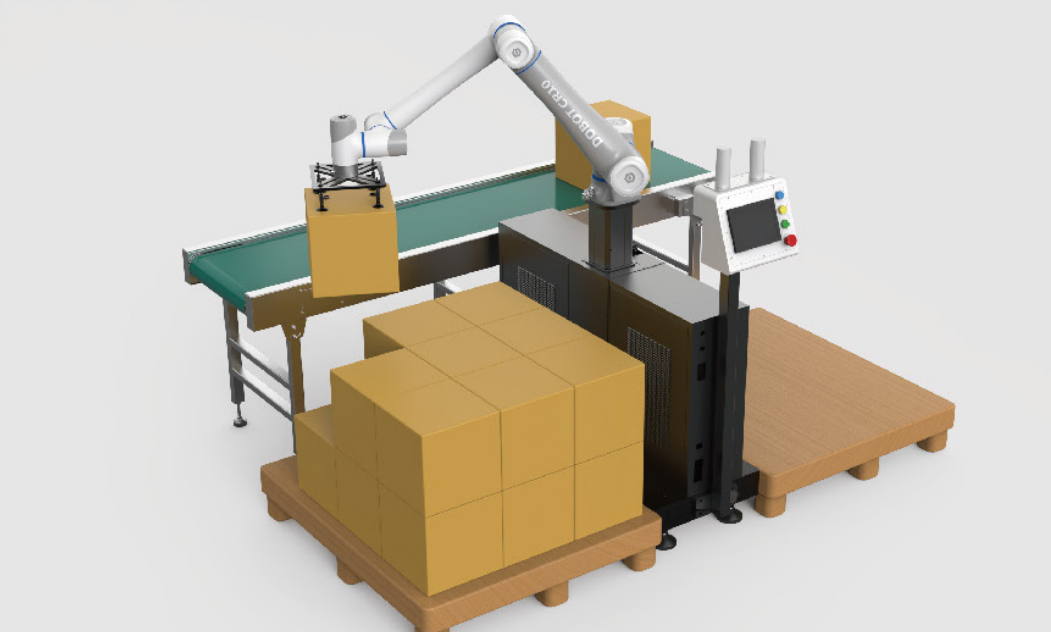

CR Series Collaborative Robot Packaging & Palletiz.png)

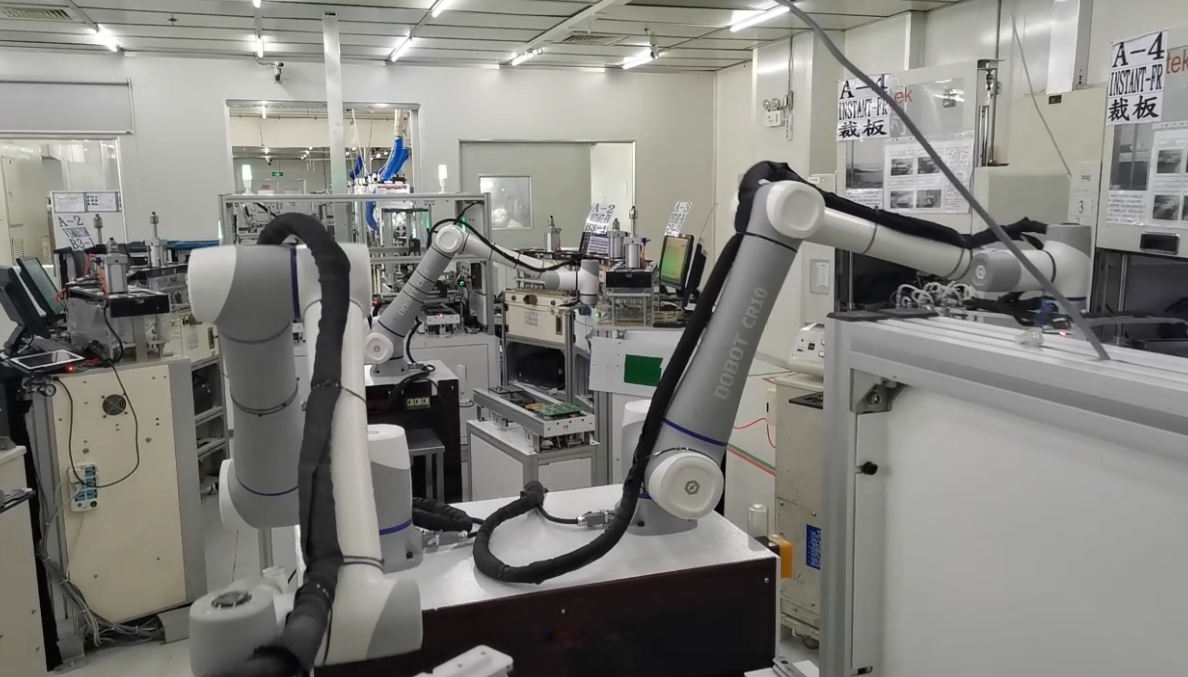

PCB Board Burn-in Assembly Line Handling by CR
| SafeSkin | ||
| Sense Type | Proximity and contact | |
| Sensing Targets | Human bodies, metals, liquids, etc. (Less effective with non-conductive items) | |
| Installation Location | J4, J5, J6 recommended | |
| Effective Sense Range | 5 ~ 15 cm (varies based on installation location) | |
| Sensing Cycle Time | 0.01 s | |
| Emergency Stop Execution Time | 0.1 s | |
