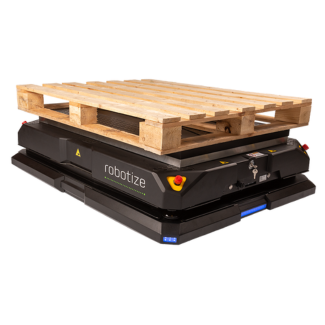

GoPal U24W AMR

The GoPal U24W pallet AMR is designed for automatically picking up, transporting and delivering payloads up to 1200 kg (2645 lbs) on US-pallets.

VIDEO: Watch the U24W in action.
DATASHEET: Download GoPal U24W technical specifications (PDF)

DIMENSIONS
Length x Width x Height: 1,400 x 1,060 x 340 mm // 55.12 x 41.73 x 13.39 in
Weight: 242 kg // 534 lbs

PERFORMANCE
Battery time (autonomy): 6-14 hours (or up to 20 km* // 12.4 miles*)
Maximum speed: 2 m/s (7.2 km/h) // 6.56 ft/s (4.47 MPH)*
Turning radius: 1000 mm // 40 in (from robot center)

SAFETY & COLLISION AVOIDANCE
Laser scanners with 360° protection
4 x emergency stop buttons
Mechanical bumper with 360° protection
3 x 3D cameras (two front facing and one rear facing).

BATTERY
Type / Voltage: LiFePO4 / 48V
Charge time: 45 min (full charge)
Number of charges: About 5,000

CHARGER INTERFACE
Automatic docking interface in front of the robot
Connector in back of the robot for manual charging

COMMUNICATION
Wi-Fi 802.11ac

ENVIRONMENTAL
Operating temperature: from -10°C to +45°C // +14°F to +113°F
Humidity: max. 95 % (non-condensing)

FLOOR REQUIREMENTS
Slope: Near-level (2%)
Friction coefficient (min.): 0.6
Maximum height of obstacles: 3 mm // 0.12 in

LOAD
Maximum payload (incl. pallet): 1200 kg // 2645 lbs.
Length (max): 1240 mm // 48.82 in (4.06 ft)
Width (max): 1020 mm // 40.16 in (3.34 ft)
Height (max): 2400 mm* // 94.50 in* (7.87 ft*)

PALLET TYPES
Specifically designed for US and UK pallets

PALLET CONDITION
Undamaged, original strength maintained

LANE CONDITIONS
Minimum lane width: 1400 mm // 55.12 in (4.60 ft)
Recommended lane width: 2300 mm // 90.55 in (7.55 ft)
High speed lane width: 3000 mm // 118 in (9.84 ft)

*depending on load conditions
