Eyes and brains for your robot: With its innovative hardware and software products, Roboception GmbH, based in Munich, is a pioneer in 3D sensor technology. Our 3D stereo sensor rc_visard enables robotic systems to reliably perceive their environment in real time; the complementary rc_reason software suite offers application-specific modules to add on as needed for your individual tasks. Intuitive user interfaces make the implementation as easy as can be: Users, even without any prior robot vision experience, will be able to deliver task-relevant information such as grasp points with just a few mouse clicks. We combine both classical and AI-based methods to give the robots eyes – and hence deliver key elements of our customer’s most forward-looking automation solutions in domains like logistics, automation and beyond.
Product filed under:
Software & AI Software & AI
The rc_reason BoxPick Module is an optional on-board component of the rc_visard, which provides a perception solution for robotic pick-and-place applications such as de-/palletizing and sorting of packets. It allows the detection of stationary items with rectangular surfaces and the determination of their position, orientation and size for picking.
-
Initial identification of load carrier for bin-picking
-
Reliable detection of flat, rectangular surface(s)
-
Identification of size, position, and orientation of rectangular objects
-
Works with static and robot-mounted sensor
-
Works with different grippers (suction, two-finger)

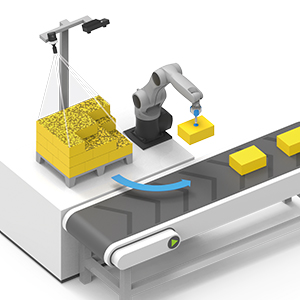

The rc_reason BoxPick is an optional software component that can be easily installed on-board the rc_visard or rc_cube and operated through the standard interface. Equipped with the BoxPick Module, the Roboception's 3D stereo sensors detect rectangular surfaces over pre-defined size ranges and optionally computes potential grasp points. It allows the detection of the position, the orientation and the size of the stationary objects and enables the robot to place the objects in a defined position. The use of the RandomDot Projector is mandatory in order to support all kind of surfaces, especially of packets whose natural scene texture is insufficient. The ExposureActiveAlternate mode of the Projector sets the output high during the exposure time for every image, so that the quality of the depth image is improved for every image. The BoxPick Module enables robots to pick unsorted and unordered packets out of a bin and palletize these items in a defined oriented way. It can also be used for de-palletizing packets to a conveyor belt, e.g. for cross-belt sorters.
