QR145 optical incremental encoder provides an improved feedback solution in applications typically using modular encoders. Common options include 5-26V operation and IP66 sealed design.

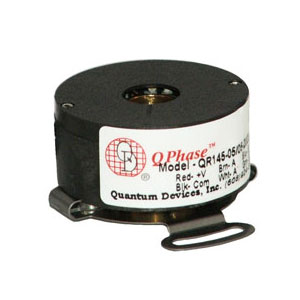

Quantum Devices Model QR145 optical incremental encoder provides an improved feedback solution in applications typically using modular encoders. With an overall height of only 0.87” and the stability of a bearing encoder design, the model QR145 optical incremental encoder can provide significant performance upgrades in applications limited by traditional modular encoder solutions. Outputs consist of a quadrature with reference pulse and three-phase commutation, which can be configured with either the industrial standard 5 volt RS-422 Line Driver or the 5 to 26 volt OL7272 line driver. A flexible spring mount allows for much greater tail shaft run out than can be tolerated by modular encoder designs, plus it provides 30 degrees of rotation for commutation timing. A housing constructed of conductive carbon fiber composite provides the EMI shielding of an all metal housing and the performance of a lightweight robust assembly. An optional IP66 housing is available at a fraction of the cost of competitors’ comparable sealed encoders.
QR145 Optical Incremental Encoder Design Features:
- 500 kHz fundamental frequency response
- Low profile, 0.87″ assembled height
- Bearing design simplifies encoder attachment
- Resolution up to 5000 lines per revolution direct read
- 4, 6 or 8 pole commutation
- Conductive carbon fiber housing
- 1.575″, 1.812″ bolt circle or size 15 resolver mounting
- Optional IP66 housing
- Through shaft sizes up to 0.375″ (10 mm) diameter
- High noise immunity
- Cost competitive with modular encoders
Applications:
- Servo motors
- Robotics
- Medical
- Packaging
- XY gantry
Note: prior to transitioning to RoHS-compliant, the product name was QD145 rather than QR145. Therefore, when cross-referencing a QD145 configuration, simply substitute the configuration prefix with QR145.
QR145 Optical Encoder Electrical Specifications
| Input Voltage | 5 VDC ±5% or 5-26 VDC |
|---|---|
| Input Current Requirements | 125 mA typical @ 5 VDC plus interface loads |
| Input Ripple | 2% peak to peak @ 5 VDC |
| Output Circuits | 01 = 26C31 line driver (RS-422) 02 = OL7272 high voltage line driver 03 = TTL output (single-ended) 04 = ABZ 26C31 line driver, UVW open collector *Other outputs (or combinations) upon request including open collector ABZ |
| Incremental Output Format | Quadrature with A leading B for CW rotation Index pulse centered over A for 2500 line count and below Index pulse true over A and B high for 2500 line count and above |
| Max Operating Frequency | 500 kHz |
| Symmetry | 180º electrical ± 10% typical |
| Minimum Edge Separation | 54° electrical |
| Commutation Format | Three phase 4, 6 or 8 poles (other pole counts upon request) |
| Commutation Accuracy | ±1° mechanical |
QR145 Optical Encoder Environmental Specifications
| Storage Temperature | -40 to 125°C |
|---|---|
| Operating Temperature | -20 to 100°C typical -20 to 120°C optional |
| Humidity | 98% non-condensing |
| Vibration | 20 g's @ 50 to 500 CPS |
| Shock | 50 g's @ 11 ms duration |
QR145 Optical Encoder Mechanical Specifications
| Maximum Shaft Speed | 8000 RPM |
|---|---|
| Bore Diameter (Tolerance) | 0.1875", 0.250", 0.3125", 0.375", 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 10 mm (+0.0005/-0.0000") |
| Allowable Shaft Runout | 0.007" TIR |
| Axial Shaft Movement | ±0.030" |
| Housing | Carbon fiber composite (case ground via cable) |
| Housing Volume Resistivity | 10?² ohm·cm |
| Termination | 15 conductor cable, 28 AWG 18" long 9 conductor cable for non-commutated and TTL outputs |
| Mounting | 1.575", 1.812" bolt circle or size 15 resolver |
| Moment of Inertia | 1.5E?4 oz·in·s² |
| Acceleration | 1.0E5 radians/s² |
| Accuracy | ± 1.0 arc minute |
