Robotic Servo Belt Stand, Floorstanding with Compliant Force Control with a high-torque servo motor.
SBS82 Series

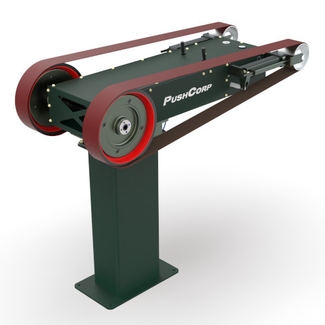

Servo Belt Stand
The PushCorp SBS82 Servo Belt Stand combines compliant force control with a high-torque 5.7 hp [4.28 kW] servo motor. This precise force and speed control allows you to achieve unprecedented levels of quality and consistency.
The SBS82 Servo Belt Stand is designed to enable maximum flexibility for any robotic part-in-hand material removal application. Linear travel compliance and excellent access allow a robot to easily manipulate parts over the belt media and perform the following operations.
- Grinding (casting gates, weld beads)
- Deburring (parting lines, chamfer)
- Polishing (glass, wood, metal)
If the application will have impact loading, interrupted cuts, or require more torque, the SBS92 is the largest Belt Stand in the series. It features a robust set of linear bearings, can apply 215 lbf [956 N], and has 62 lb· ft [84 N·m] continuous stall torque.
The contact wheels of the SBS82 Servo Belt Stand are belt driven by a high-torque servo motor. This drive system has a 2:1 reduction that provides plenty of power at the contact wheels. The belt media is tracked remotely keeping personnel out of the workcell during operation. Easily removable contact wheels allow widths of 1", 2", 3", and 4", plus a wide range of different rubber hardness. Changing the belt media is a snap with pneumatic tension and conveniently positioned manual valves.
FEATURES
- Passive Force Control
- Servo motor amplifier included
- Accurate belt media speed control
- 1.6 in [40 mm] linear compliant stroke
- Standard 1″, 2″, 3″, or 4″ x 132″ belt media
- Standard 14″ x 1″, 2″, 3″, or 4″ wide contact wheels
- PushCorp recommends Contact Rubber C134 quick change tires
- Contact wheel position output
- Remote belt media tracking
- Belt break sensors
- All fittings, fasteners, and threaded holes are METRIC
SPECIFICATIONS
| Model | SBS82 Series |
| Max Applied Force | 115 lbf [511 N] |
| Force Resolution | 1.4 lbs/psi [90.4 N/Bar] |
| Compliant Stroke | 1.6 in [40 mm] |
| Weight | 450 lbs [204 kg] |
| Supply Air | Dry, 5µm Filtered, Non-lubricated, 80 psi [5.5 Bar] max |
| Horsepower | 5.7 hp [4.28 kW] |
| Continuous Stall Torque | 14.7 lb· ft [20 N·m] |
| Contact Wheels | 14 in |
| Shaft Speed | 0-2000 rpm |
| Belt Speed Range | 100-7330 SFPM [Surface Feet Per Minute] |
