Since 1993 PushCorp has specialized in material removal equipment. As inventors of the force compliance device, we have supplied tools to automate thousands of robotic processes across the globe. Innovation is in our DNA and it’s why we are constantly evolving, creating, and adding new surface finishing products to our portfolio each year. Whether you are a manufacturer or a robotic systems integrator, we have the tooling to help automate your manual surface finishing process. At our core, there has always been an emphasis on quality and durability across PushCorp's entire product line. Being heavily involved in the automotive and aerospace industry, our customers expect a product that can last years with continuous trouble-free use. To ensure this quality is met, we manufacture and assemble as many products in-house as possible. To this end, 95% of all our components are machined in our state-of-the-art manufacturing facility in Dallas, Texas.
Product filed under:
End of Arm Tooling End of Arm Tooling
PASSIVE ROBOTIC FORCE COMPLIANCE DEVICE
Passive Technology
Automated Passive Compliant Tools are simple, less-expensive, open-loop devices. They rely on external, customer-supplied air pressure regulators to set the applied force. While they may lack the ultra-high precision and flexibility of Active compliance, they work extremely well for less demanding flat or prismatic parts or more specialized processes like Weld Shaving where high-accuracy force control is unnecessary.
AFD82

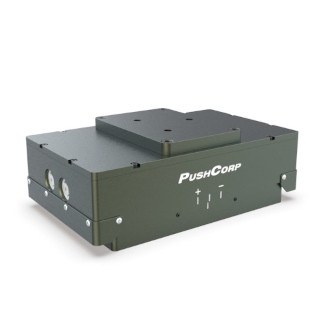

The AFD82 is part of PushCorp's Passive Compliance series. This end effector can apply up to 100 lbf [444 N] in any orientation. Unlike the active series, this equipment relies on an external air pressure regulator to set the applied force. This pressure must change when a new orientation is programmed in order to maintain a constant force. For this reason, the AFD82 is most commonly used for robotic material removal applications with flat or prismatic parts.
The STC0612-BT40, SM0612, STC1015, and STC1515 are servo spindles optimized to mount to the AFD82. For weld shaving applications our SWS100-3.7 or SWS100-7.2 would also be excellent pairings. Together, these products can automate a wide variety of robotic processes:
If the application will have impact loading, interrupted cuts, or require a heavier spindle our AFD92 is the largest in the series. It features an even more robust set of linear bearings and can apply 250 lbf [1112 N].
The AFD82 Series is available in three configurations: AFD82-1 Vertical, AFD82-2 Horizontal, and the AFD82-3 Table Top. The units are functionally identical, but differ in the orientation with which they attach to the robot wrist, or mount to a table. This allows you to optimize robot reach and dexterity for your particular automation application.
FEATURES
- Single or Double acting force application
- Carriage Position Sensor included
- Integral cartridge air filter
- Low Cost
- User supplied pressure regulator
- 115 lbf [511 N] maximum compliant force
- 1.6 in [40 mm] Linear compliant stroke
- All fittings, fasteners, and threaded holes are METRIC
SPECIFICATIONS
| Model | AFD82 |
| Max Force | 115 lbf [511 N] |
| Force Resolution | ±1.4 lb./psi [±90.4 N/bar] |
| Max Payload Weight | 115.0 lbs [52.2 kg] |
| Weight | AFD82-1 - 34 lbs [15 Kg] AFD82-2 - 24 lbs [11 Kg] AFD82-3 - 24 lbs [11 Kg] |
| Compliant Stroke | 1.6 in [40 mm] |
| Supply Air | Dry, 5µm Filtered, Non-lubricated, 80 psi [5.5 Bar] max |
Other Products from PushCorp, Inc.
SBS82 Series
Robotic Servo Belt Stand, Floorstanding with Compliant Force Control with a high-torque servo motor.
