Ultra-Compact. Low Power. Edge AI Ready. Premio’s RCO-1000-EHL Series

Premio's latest fanless mini industrial computer, the RCO-1000-EHL brings powerful compute performance in a low power and ultra-compant form factor, suitable for space constrained deployments ranging from industrial automation, telematics, transportation, and surveillance.

Built Ready For The Industrial Edge IoT

The RCO-1000-EHL Series is powered by the Intel® Atom x6425E Series processor (Formally known as Elkhart Lake) for powerful quad-core performance with low power 10W TDP consumption. This system on chip (SoC) design gives the RCO-1000-EHL a generational boost in performance for Industrial IoT and Edge AI computing in comparison to its predecessor (RCO-1000-J1900).

• Up to 60% performance increase
• Up to 4x Memory Boost (supporting up to 32GB DDR4)
• Up to 2.3x faster Single and Multi-thread
• 5x Faster Graphic performance with Intel UHD

Intel NUC Alternatives: Fanless Mini PCs

Premio’s rugged and fanless mini pcs provide the same x86 intel architecture with even more flexibility, reliability and embedded longevity.

• Rugged, Fanless and Cabless
• Modular EDGEBoost I/Os
• 15 year embedded longevity and support

Industrial Grade Design

The RCO-1000-EHL Series can withstand extreme industrial environments while maintaining its performance and reliability.

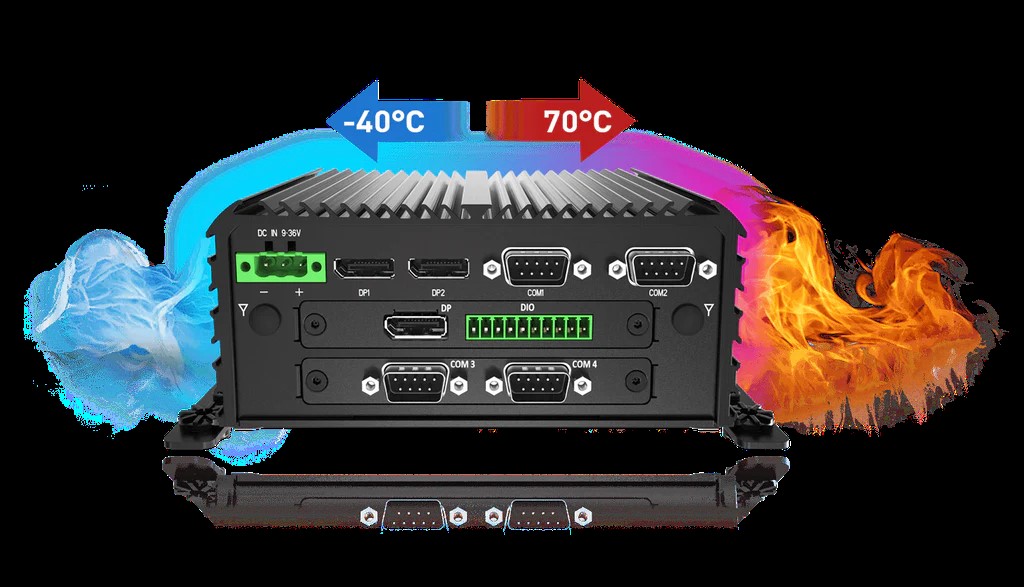

• Wide Temperature Range: -40°C to 70°C
• 50G Shock & 5Grms Vibration (MIL-STD-810G Compliance)
• Wide Voltage Input: 9VDC-36VDC Input
• Over Current & Over Voltage Protection

Certified By UL Solutions

For additional re-assurance in product quality and safety, this edge computer has earned the UL Certified Mark for ultimate reliability when operating in extreme industrial deployments.

• UL Listed (I.T.E E357184)

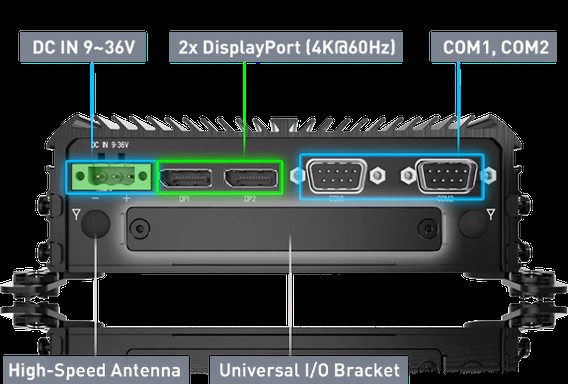

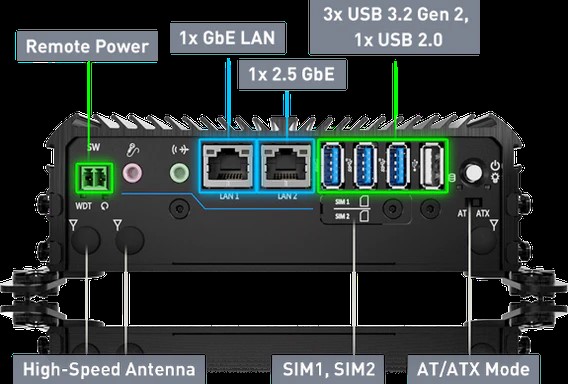

High-Speed I/O Ports And 4K Display

The RCO-1000-EHL now supports more high-speed I/O ports for more demanding IIoT edge applications.

• 2.5Gb Ethernet
• USB 3.2 Gen 2 (10 Gbps)
• True 4K Dual Independent DisplayPort

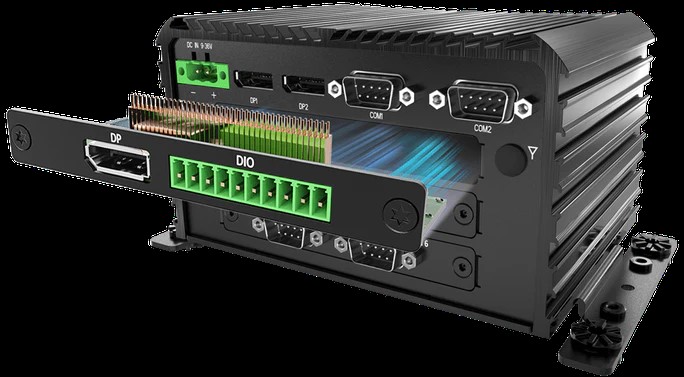

EDGEBoost I/O - Modular Daughterboards

One of the key advantages of the RCO-1000-EHL Series is its customizable and scalable universal I/O brackets through Premio’s proprietary PCIe 3.0 pins design. The RCO-1000-EHL Series is scalable up to 3x Universal I/O Brackets.

• Faster Time-to-Market
• Flexibility & Scalability
• Modular I/O Configurations
• Quick Maintenance & Upgradability

Edge AI Ready

The RCO-1000-EHL empowers AI intelligence at the rugged edge by featuring the Hailo-8™ M.2 module. The Hailo-8™ AI processor is an AI accelerator that delivers data center-class performance to execute deep learning inferencing in real-time while maintaining low power consumption and compact M.2 form factor.

Mobile IoT Data Telemetry

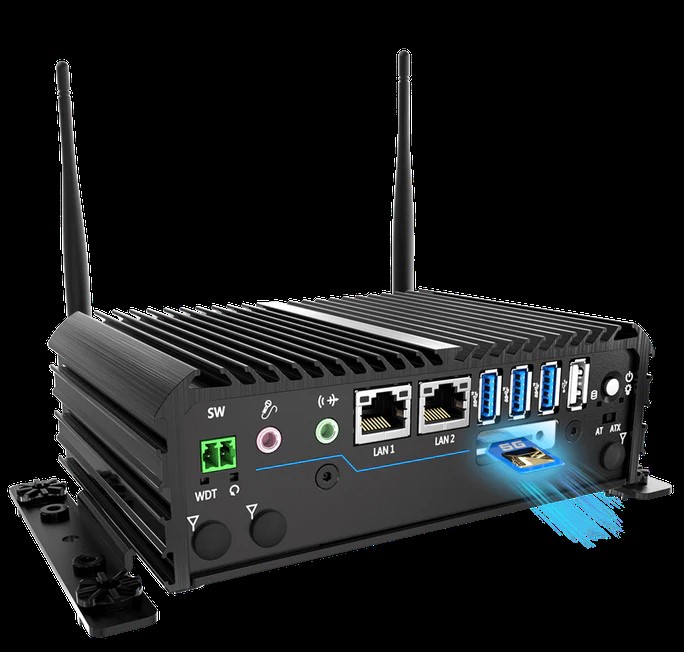

The system features an external Dual-SIM socket compatible with 5G cellular connectivity through a modular add-in card. The 5G module supports the Global Navigation Satellite System (GNSS) and eSIM features for autonomous geo-spatial positioning and cellular redundancy.

• 5G, 4G/LTE
• Wi-Fi 6
• Bluetooth 5

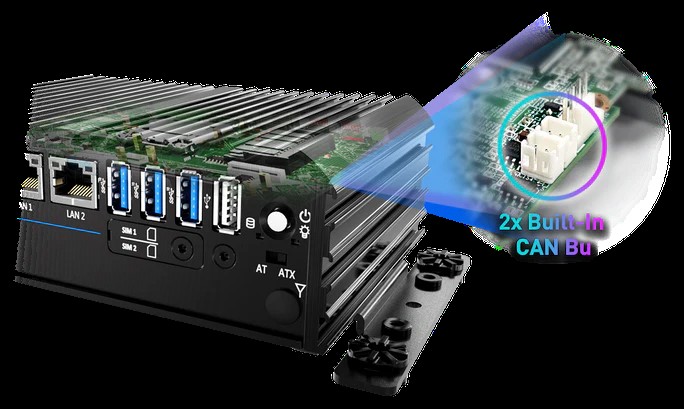

Built-In CAN Bus For In-Vehicle Communication

The embedded CAN bus (Controller Area Network) allows the RCO-1000-EHL to communicate directly with other machines and network devices, reducing the need for a host computer and simplifying cable routing.

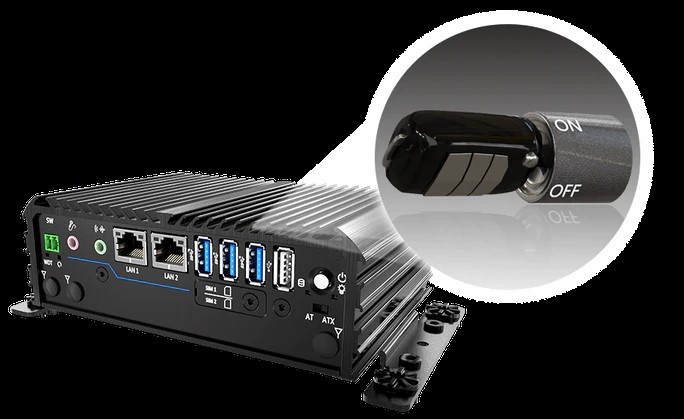

Power Ignition Management

The RCO-1000-EHL Series has an optional power ignition module for ignition sensing and management. The power ignition management delays the system shutdown after engine shutoff for a pre-determined time interval.

Hardware Security With TPM 2.0

The RCO-1000-EHL implements a TPM 2.0 chip that safely encrypts business-critical data. This integrated trust platform module’s root keys enable password protection, device authentication, and future-ready cybersecurity to defend the device’s data and transmission against malicious attacks.

Flexible Mounting

The RCO-1000-EHL supports various mounting configurations, including a Side mount, VESA mount, Wall mount, and an optional DIN-Rail mount. The ultra-rugged design, ultra-compact form factor, and flexible mounting options enable the new RCO-1000-EHL Series to be ready for industrial IoT deployments anywhere.
