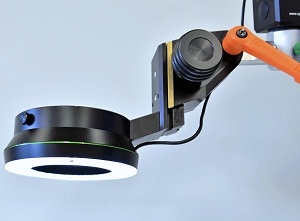

Opto's LEDrive is a focus drive C, coarse w/ingerated LED ring and 5/8' pin adapter.
LEDrive with integrated ring light and 5/8' interface is specially geared to the efficient and ergonomic use of a stereo microscope in order to make the handling even easier and more flexible. Remarkable is the long working distance of max. 245mm, which gives you maximum flexibility.
LEDrive is part of the Opto microscope accessories for stereomicroscopes of leading microscope manufacturers such as Leica, Nikon, Olympus etc.
Technical Features:
Focus drive C: coarse
Travel: 57mm
Load: max. 9kg
Universal scope carrier: diameter 76mm
Ring light, integrated into carrier: LED, color white approx. 6800K
Illuminance: 22500 lx at working distance 245mm
40000 lx at working distance 160mm
61000 lx at working distance 110mm
Power consumtion: 12V/ 10W
Cable length: 2 m
Stand adapter, pin 5/8'
Article number 043-643045
Accessories:
050-70011220TV Power supply 12V / 25W
035-8645BN Ecoline Stereo Microscope 645BN
043-603003 Mobile Floor Stand
