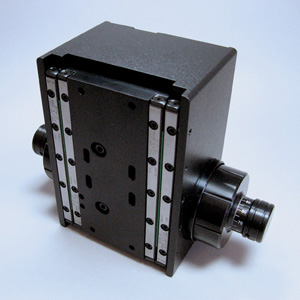

Heavy Duty Focus Drive OP from Opto is designed to carry a heavy weigh microscope or other high tech equipment that needs accurate focusing with a maximum load of 50kg with pre-adjustment for 20kg. The heavy duty focus drive provides operators with accurate and precise positioning services at high magnifications. Together with our stand accessories and tables it is possible to set up quickly inspection- or analysis- stations for industrial or lab applications as stand-alone systems or for series production.
It is engineered with focus blocks that enable the unit to be positioned uprightly through the use of a hand wheel.
Heavy Duty focus drive provides operators with accurate and precise positioning services at high magnifications.
Article Number 100-FB-OP
Technical Features:
Focus Drive: coarse / fine
Resolution: <1µm
Repeatability: 1µm
Backlash: < 5µm
Travel range: 50mm
Travel per knob rotation, coarse: 4mm
Travel per knob rotation, fine: 0.1mm
Load: max. 50kg with pre-adjustment for 20kg
Weight: 2kg
Accessories for attachement to stands and walls
045-600157-01 Adapter to Column for Focus Drive OP
Download of our Microscope Accessories Brochure: http://www.opto.de/media/opto_catalog_microscope_accessories.pdf
